Product Introduction
Based on the q-switch main oscillator, high power fiber amplifier (MOPA) structure, provides a variety of power models of 5W~70W, suitable for industrial and scientific research applications, can meet most of the plastic marking and all metal materials marking, etching, deep carving, surface cleaning, high-precision thin plate cutting, drilling and other applications.If you are interested in our products, please contact us for a quotation.
Maintenance And Precautions
- When MAX laser source is working, do not touch or collide with the movable beam of the scanning workbench.
- The laser and optical lens are fragile, please handle with care and avoid vibration when handling.
- When there is a malfunction in the machine, stop working immediately and ask a professional to deal with it.
- Pay attention to the sequence of turning on and off the laser.
- Note that the format of the marking machine shall not exceed the working format.
- Please keep the room and the surface of the machine clean and tidy.
Service
Pre-Sales Service
After receiving your inquiry, we will promptly send you detailed product information and patiently address your questions.
Additionally, we will recommend suitable machines based on the information you provide and customize specific appearances to meet your needs.
After-Sales Service
We offer online operation guidance, and if you require further assistance, we can visit your location to provide free on-site training.
In the event of any damage during transportation,we will send you a replacement machine at no charge.
Additionally,any issues with our machines that arise within two years, provided they are not due to intentional damage will be covered by us.

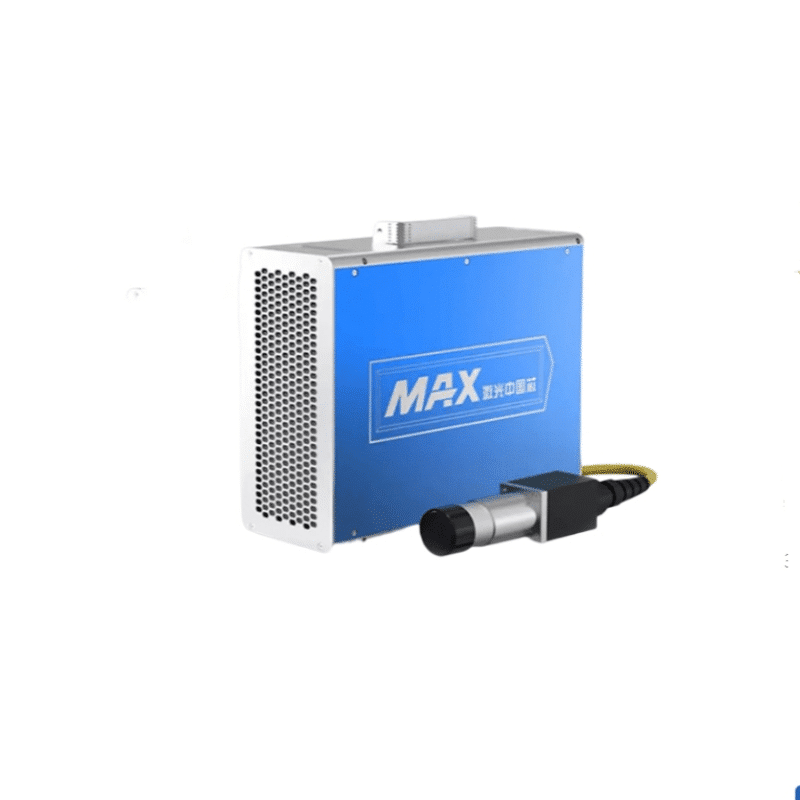

Product Display
Product Parameters
| Model | MFP-20 | MFP-30 | MFP-50 |
| Average ray power (W) | 20 | 30 | 50 |
| Working method | Pulse | Pulse | Pulse |
| Beam Quality(M2) | 1.5 | 1.5 | 1.5 |
| Center Wavelength(nm) | 1064 | 1064 | 1064 |
| Spectral broadband 3db (nm) | 5~10 | 5~10 | 5~10 |
| Single Pulse energy (mj) | 1 | 1~1.2 | 1~1.5 |
| Pulse Width FWHM (ns) | 100(90~110) | 100(90~110) | 100(90~110) |
| Pulse repeat frequency(KHz) | 20~80 | 30~60 | 33~80 |
| Output power instability(%) | 5 | 5 | 5 |
| Output beam diameter(mm) | 7.5(6~9)(1/e2) | 7.5(6~9)(1/e2) | 7.5(6~9)(1/e2) |
| Output beam ellipticity(%) | 90 | 90 | 90 |
| Laser open time(us) | 110~140 | 110~140 | 110~140 |
| Laser close time(us) | 110~150 | 110~150 | 110~150 |
| Fiber optic cable length(m) | 2.5(1.9~3) | 2.5(1.9~3) | 2.5(1.9~3) |
| Working Voltage (VDC) | 24(23~25) | 24(23~25) | 24(23~25) |
| Reted Power consumption(W) | 150 | 240 | 360 |
| Working environment temperature(℃) | 10~42 | 10~42 | 10~42 |
| Relative humidity of working environment(%) | 10~95 | 10~95 | 10~95 |
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to your forwarder’s location.
Scenario 2: If you have customs clearance experience, we can assist you in contacting a freight forwarder.
Scenario 3: If you don’t have any customs clearance experience, we offer DDP service, where we will find a professional forwarder to deliver the product directly to your door.
FAQ
1. Are you a factory or a trading company ?
We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Laser Marking Machine,Laser Welding Machine,Laser Cleaning Machine,Laser Cutting Machine,Laser Spare Parts
4. why should you buy from us not from other suppliers?
More than 10 series, 300 types. Personalized products and services to provide customers with a significant advantage.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,D/P D/A,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Japanese
