Product Application

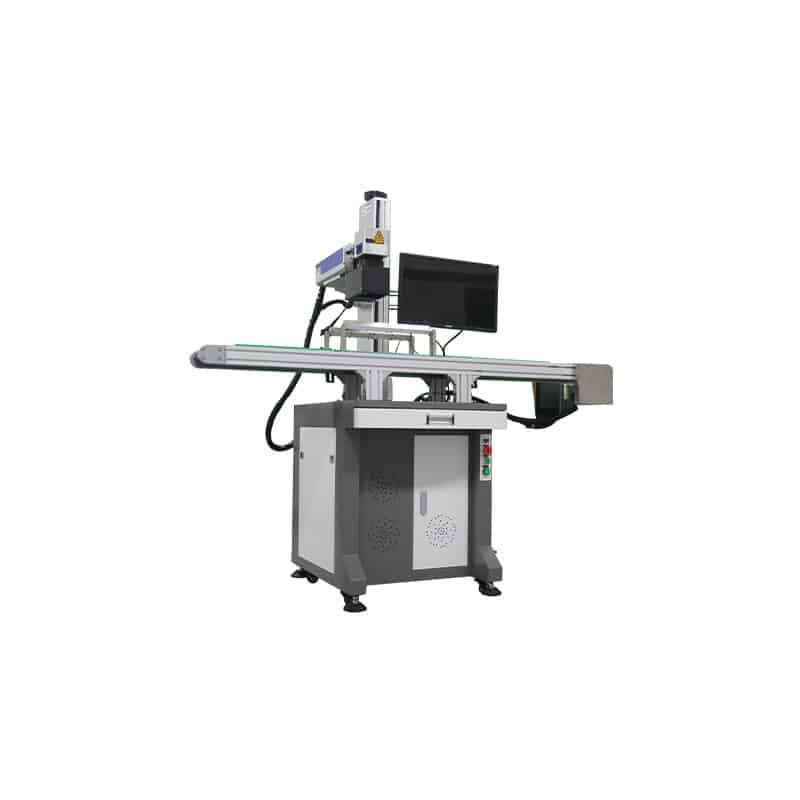

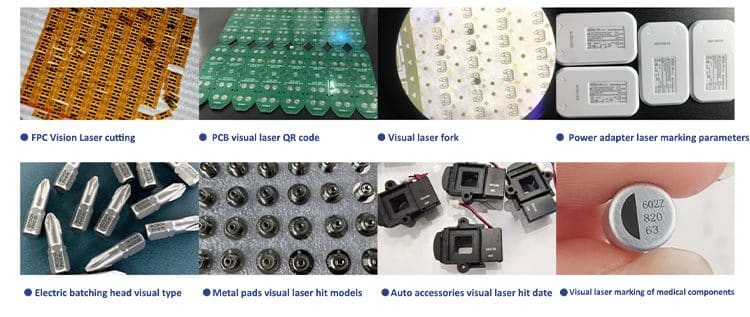

The CCD Fiber Laser Marking Machine Visual Positioning Automatic Focus Vision System combines a CCD camera with a fiber laser marking machine to achieve high precision and efficiency in the marking process.It can marking on mobile phones buttons, plastic translucent keys, electronic components, integrated circuits(IC), electrical appliances, communication products,sanity ware,tools,accessories,knifes,medical device industry,jewelry, glass and clocks,auto parts,luggage buckle,cooking utensils,stainless steel products and other industries, etc.
Product Features
- Industrial laser, high-speed digital vibrator, stable performance;
- High precision visual positioning system, accurate position, corresponding speed, no fixture;
- Any number of products, any Angle, can be accurately marked tothe designated position;
- Self-developed MACS machine vision software, simple operation.rich functions, easy maintenance;
- Special precision synchronous conveyor belt, supporting steppingmode and photoinductive mode, can be switched according to demand;
- lt can be matched with assembly line or other automatic loading and unloadingmechanism to save manpower and realize automatic marking without humans.
Service
Pre-Sales Service
After receiving your inquiry, we will promptly send you detailed product information and patiently address your questions.
Additionally, we will recommend suitable machines based on the information you provide and customize specific appearances to meet your needs.
After-Sales Service
We offer online operation guidance, and if you require further assistance, we can visit your location to provide free on-site training.
In the event of any damage during transportation,we will send you a replacement machine at no charge.
Additionally,any issues with our machines that arise within two years, provided they are not due to intentional damage will be covered by us.
Product Parameters
Output Power | 20W / 30W / 50W / 70W / 100W |
Laser wavelength | 1064nm |
Beam quality M2 | 1.4 |
Pulse repetition frequency | 20-80 kHz |
Output power stability | 5% |
Design life | About 100,000 working hours (not service life) |
Directive projection | Red light 655nm output 2.0mW |
Marking range | 200*200 mm |
Recognition angle | 360° |
Engraving depth | ≤1mm (depending on power and time) |
Engraving speed | ≤10000mm/s |
Repeatability | ±0.002 |
Minimum marker line width | 0. 1mm |
Minimum character height | 0.15mm |
Dimensions | Marking machine: 600X800X1400mm Conveyor belt: 1230X260X160 mm |
Total Weight | About 85KG |

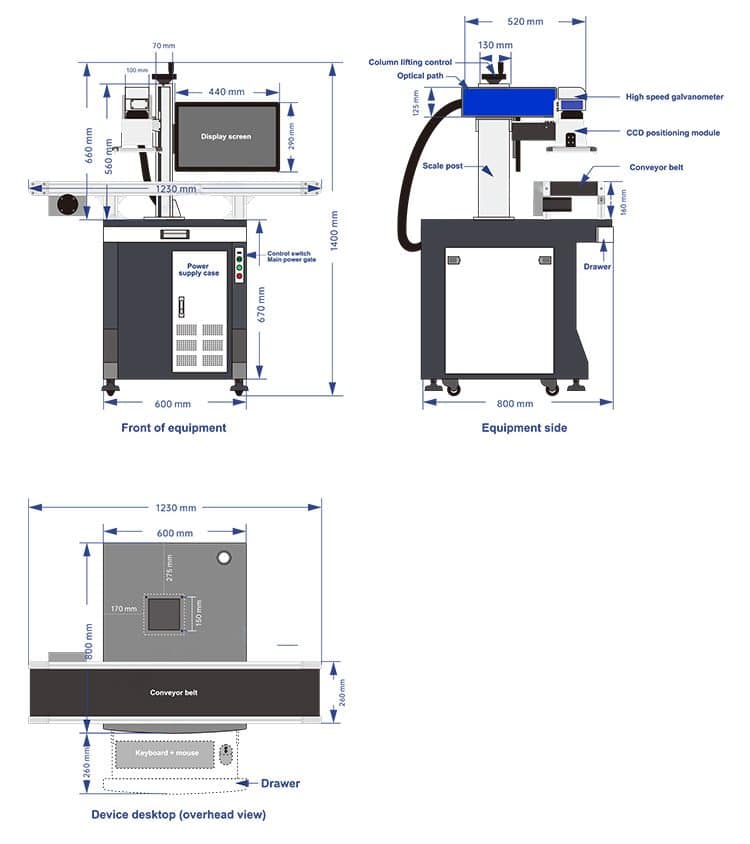

Product Size
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to your forwarder’s location.
Scenario 2: If you have customs clearance experience, we can assist you in contacting a freight forwarder.
Scenario 3: If you don’t have any customs clearance experience, we offer DDP service, where we will find a professional forwarder to deliver the product directly to your door.
FAQ
1.How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2.How long is the cable?
Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.
3.How thick can 1500w-3000W be welded
1-8mm thick metal materials.
4.Is there a wire feeder?
We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address.We will send more detailed pictures to your email.
5.Can aluminum and galvanized steel be welded?
Yes, it can.
6.Packaging
All our machines are packed in wooden boxes.
7.Language interface
Supports language customization, etc. You can also translate and insert to software.
