Product Application
RL-20M small fiber laser engraver with compact size and flexible processing,it has distinctive performance for fast laser marking tasks. The small cabinet can be highly integrated into the production line.It can marking on mobile phones buttons, plastic translucent keys, electronic components, integrated circuits(IC), electrical appliances, communication products,sanity ware,tools,accessories,knifes,medical device industry,jewelry, glass and clocks,auto parts,luggage buckle,cooking utensils,stainless steel products and other industries, etc.
Service
Pre-Sales Service
After receiving your inquiry, we will promptly send you detailed product information and patiently address your questions.
Additionally, we will recommend suitable machines based on the information you provide and customize specific appearances to meet your needs.
After-Sales Service
We offer online operation guidance, and if you require further assistance, we can visit your location to provide free on-site training.
In the event of any damage during transportation,we will send you a replacement machine at no charge.
Additionally,any issues with our machines that arise within two years, provided they are not due to intentional damage will be covered by us.
Product Parameters
| Product Name | Optical Fiber Mini Marking Machine |
| Laser power | 20W |
| Laser Type | Fiber Laser |
| Marking range | <150MM |
| Focusing system dual | Dual red light autofocus system |
| Engraving depth | Deepen according to time cooling |
| Cooling method | Air cooling machine |
| Machine weight | 20KG |
| Marking software | Static marking software overall |
| Overall size | 210*380*630MM |
| Rated voltage | 220V/50Hz |

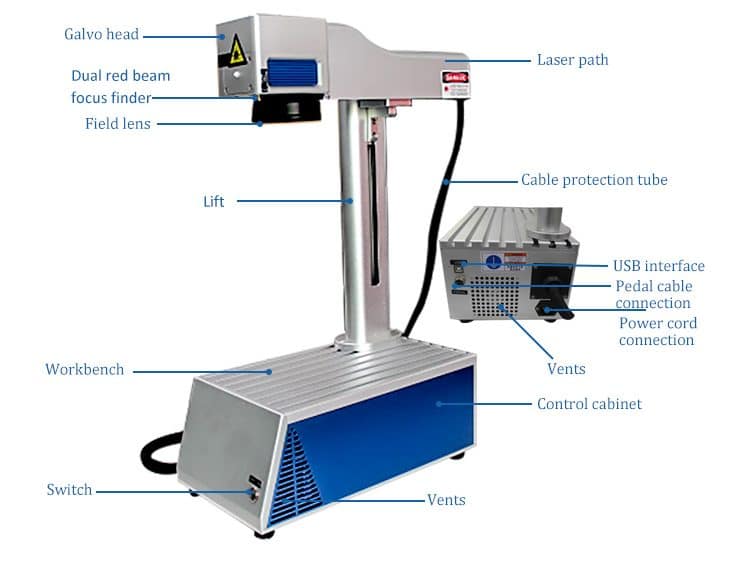

Product Details
Laser source:
The famous brand, stable laser power, long service life, and good marking effect.
Galvo head:
High focus, high stability, high precision, low temperature, reduced delay, automatic calibration.
Field lens:
imported lens material, high precision. fast speed, and stable operation, a galvanometer is a kind of marking action actuator, which can quickly scan the content that needs to be marked.
Workbench:
All aluminum plate design, simple structure flexible and adjustable.multiple column slots for marking at different positions.
Control system:
Adopt advanced software with stable performance and high reliability.software and parameter settings are included before the machine delivered.
Dual red light indicators:
The double red light assists to correct the focal length, just simple adjustment, let the double red dots overlap to reach the focal length. Find the focal length without complicated measurements.

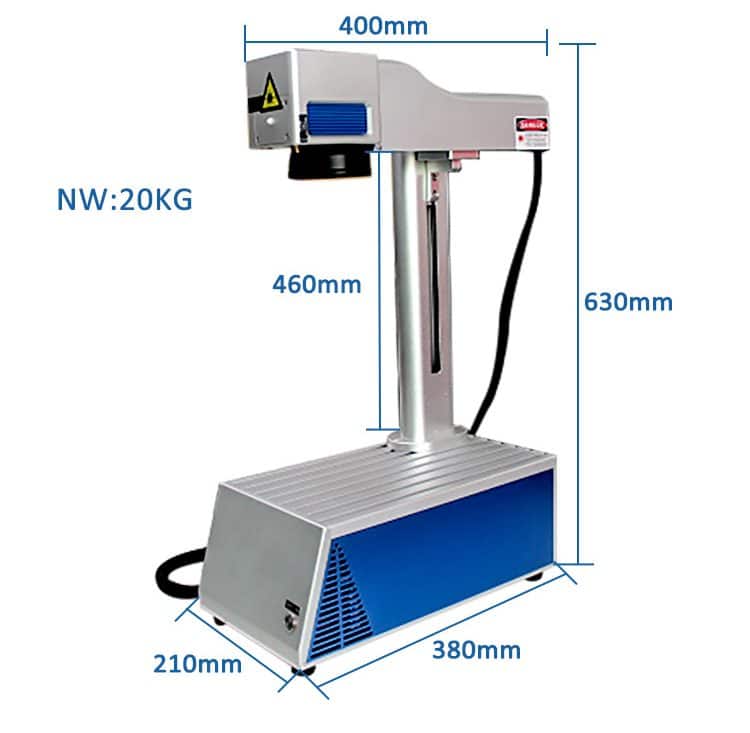

Product Size
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to your forwarder’s location.
Scenario 2: If you have customs clearance experience, we can assist you in contacting a freight forwarder.
Scenario 3: If you don’t have any customs clearance experience, we offer DDP service, where we will find a professional forwarder to deliver the product directly to your door.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2015,sell to South America(20.00%),Eastern Europe(20.00%),Mid East(10.00%),Western Europe(10.00%),Eastern Asia(8.00%),North America(5.00%),Southeast Asia(5.00%),Northern Europe(5.00%),South Asia(5.00%),Domestic Market(5.00%),Southern Europe(3.00%),Central America(2.00%),Africa(00.00%),Oceania(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Laser Marking Machine,Laser Welding Machine,Laser Cleaning Machine,Laser Cutting Machine,Laser Spare Parts
4. why should you buy from us not from other suppliers?
More than 10 series, 300 types. Personalized products and services to provide customers with a significant advantage.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,D/P D/A,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Japanese
