Product Application

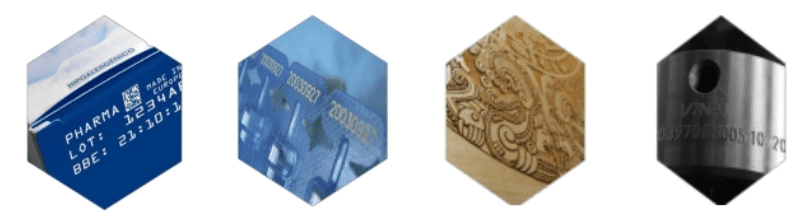

RL-H9 Hand-held laser marking machine uses a laser beam to make permanent marks on the surface of various materials. It is applicable to all kinds of metal materials, such as gold, silver, copper, steel, etc., and also to some non-metallic materials, such as paper, plastic, glass, etc. The range of application materials is wide, which can be used for trademark coding, bar code marking and other personalized customization.
Market advantage
Compared with the bulky traditional marking machine the handheld laser marking machine is smaller in size and more portable and flexible in use. Aiming at the problem of the endurance of the handheld laser marking machine on the market, the technical reform has been made.
The new generation of handheld laser marking machine has two endurance modes.
- 220V plug-in version: plug in and use, convenient and fast.
- Charging version: detachable battery design, charging mode: off line or built-in; With the backup battery, you can have unlimited battery life.
Service
Pre-Sales Service
After receiving your inquiry, we will promptly send you detailed product information and patiently address your questions.
Additionally, we will recommend suitable machines based on the information you provide and customize specific appearances to meet your needs.
After-Sales Service
We offer online operation guidance, and if you require further assistance, we can visit your location to provide free on-site training.
In the event of any damage during transportation,we will send you a replacement machine at no charge.
Additionally,any issues with our machines that arise within two years, provided they are not due to intentional damage will be covered by us.
Product Advantages
Price advantage
Price advantage, quality assurance
Provide high-quality quality at are reasonable price, making laser technology universal.
Weight advantage
Body design, small and light
The overall weight is 6.5KG, which conforms to the ergonomic design.It is portable and flexible.
Technical advantages
Infrared positioning, accurate marking
Advanced laser technology is used to realize fast focusing and high-precision marking
Endurance advantage
Dismantle the battery to ensure a safe life
It is equipped with a 1KG high-capacity detachable battery cell and has unlimited endurance.
Transportation advantages
Lightweight packaging and fast transportation
The package of complete equipment is only 10KG at most, which can greatly reduce the transportation cost and effectively reduce the time cost and transportation cost.
System advantages
One-touch screen, easy to operate
Configure the Linux operating system, which can be operated by hand, and is more simple and smooth.

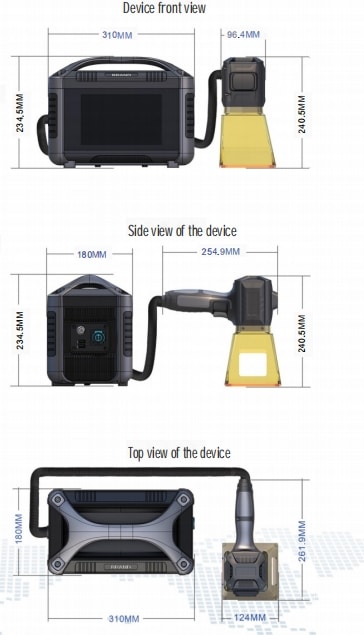

Features and Size

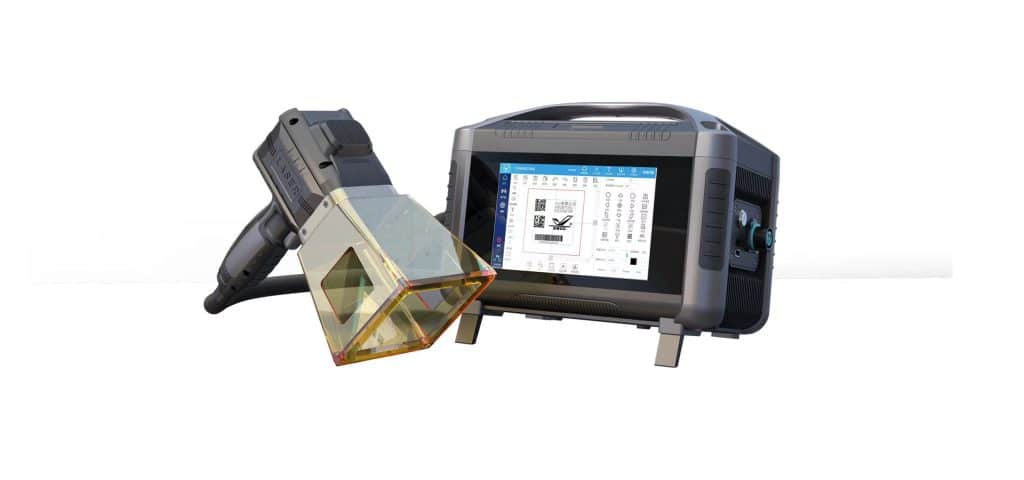

Portable design
Body design:small and lightweight,the whole machine only weighs 6.8Kg;Handheld operation,flexible operation.
Power supply design
1.220V mains version:plug-and-play,convenient and fast;2.Lithium battery version:battery detachable design,
Touch screen design
8-inch fully bonded LcD screen, one-keytrigger; lt can be used for multiple purposesin one machine, and the hardware isdiversified and compatible;
Configure the Linux system
Using 8-core processor, configuration securitylevel, high performance, stable response
Product Parameters
| Laser | Fiber laser generator |
| Output power | 8W、20W、25W、30W |
| Marking range | 70×70mm、100×100mm(Optional) |
| Deflection seismic mirror | High-precision two-dimensional scanning system |
| Laser wavelength | 1064mm |
| FoCcus the lens | 130mm |
| Marking speed | ≤7000mm/S |
| Master control | Integrated motherboard,8-inch capacitor fully bonded to the screen |
| operating system | Linux system |
| Marking type of engraving | Redlett Postionen,Foxin |
| Line width | 0.03mm |
| Repeatable positioning accuracy | 0.01mm |
| Targeting method | Red light positioning,focusing |
| The number of engraved character lines | Any line within the valid marking range |
| Tenon Benn Gravid CharakTryins | 800 characters (related to material and printed content) |
| Font | Chinese and English,numbers,Chinese Traditional and other standard fonts |
| File format | BMP、DXF、HPGL、JPEG、PLT |
| Barcode | CODE39、CODE128、CODE126、QR |
| Power supply | 110V/220VAC、Lithium(216wh) |
| Power consumption | 145-250W |
| Operating temperature | 0.40° |
| Total weight | 6~6.8KG |
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to your forwarder’s location.
Scenario 2: If you have customs clearance experience, we can assist you in contacting a freight forwarder.
Scenario 3: If you don’t have any customs clearance experience, we offer DDP service, where we will find a professional forwarder to deliver the product directly to your door.
FAQ
Q: If I want to become your distributor, can I get a discounted price?
A: Absolutely, we offer more favorable pricing for our distributors.
Q: Does the laser marking machine pose any harm to the human body?
A: Our laser marking machine is completely safe for the human body and also environmentally friendly.
Q: How long can the laser marking machine be used?
A: Theoretically, the life of our laser marking machine is 80,000 hours. In actual use, the life can usually reach more than 100,000 hours.
