Introduction: Why Stainless Steel is Perfect for Laser Welding
Stainless steel is one of the most widely used materials in modern manufacturing, from food processing equipment to medical devices and architectural structures. Traditionally, joining stainless steel required the steady hand of a TIG welder, but the introduction of fiber laser technology has revolutionized the process. In this guide, we’ll explore laser weld stainless steel techniques, optimal settings, and the common mistakes that even professional shops make.

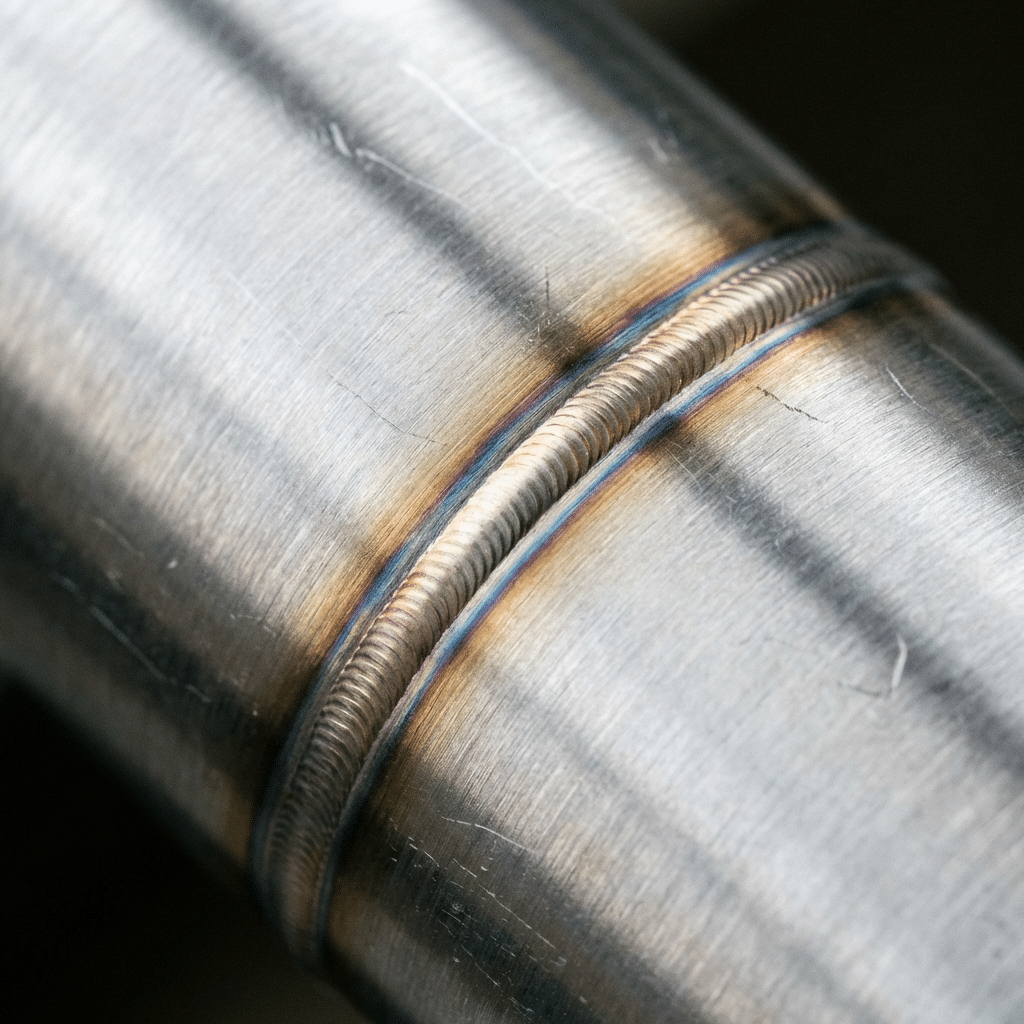

The beauty of laser welding stainless steel lies in the speed and the minimal heat-affected zone (HAZ). Because stainless steel has a relatively high thermal expansion coefficient and low thermal conductivity compared to carbon steel, it is prone to distortion when subjected to high heat over long periods. Laser welding solves this by delivering a concentrated energy beam that fuses the metal in a fraction of a second, resulting in a clean, professional finish with zero distortion.
Recommended Settings for Laser Welding Stainless Steel
While every machine varies slightly, most handheld fiber laser welders follow a predictable parameter set for different thicknesses of stainless steel (304 or 316L). Below is a general reference table for a 1500W system:
| Thickness (mm) | Power (W) | Welding Speed (mm/s) | Wobble Width (mm) | Wobble Freq (Hz) |
|---|---|---|---|---|
| 1.0mm | 500 – 700 | 25 – 35 | 1.5 | 150 |
| 2.0mm | 900 – 1100 | 20 – 30 | 2.0 | 120 |
| 3.0mm | 1200 – 1500 | 15 – 25 | 2.5 | 100 |
Note: Always use Argon (99.9% purity) as your shielding gas at a flow rate of 10-15 L/min to prevent oxidation (the blue/gold discoloration) of the weld bead.
Step-by-Step: Best Practices for Clean Stainless Steel Welds
- Surface Preparation: Even though the laser can “burn through” minor contaminants, always clean your stainless steel with an alcohol wipe to remove oil and grease. This ensures the best possible fusion.
- Focal Length Management: The distance between the nozzle and the workpiece is critical. Most guns use a copper nozzle as a guide; ensure it is set to the correct focal height (usually around 1-3mm depending on the lens).
- Shielding Gas Flow: Start the gas 1 second before the beam and keep it on for 1 second after the weld stops. This “post-flow” prevents the hot weld from reacting with oxygen as it cools.
Common Mistakes and How to Avoid Them
- Porosity: Usually caused by insufficient gas shielding or dirty metal. Increase your gas flow and check for leaks in the gas line.
- Burn-Through: This happens when you have too much power or are moving too slowly. Refer to the parameter table above and increase your travel speed.
- Discoloration (Blue/Black beads): This is oxidation. It means the metal reached a high temperature while exposed to air. Ensure your argon shield is covering the entire molten pool until it solidifies.
Conclusion: Elevate Your Production with Laser Technology

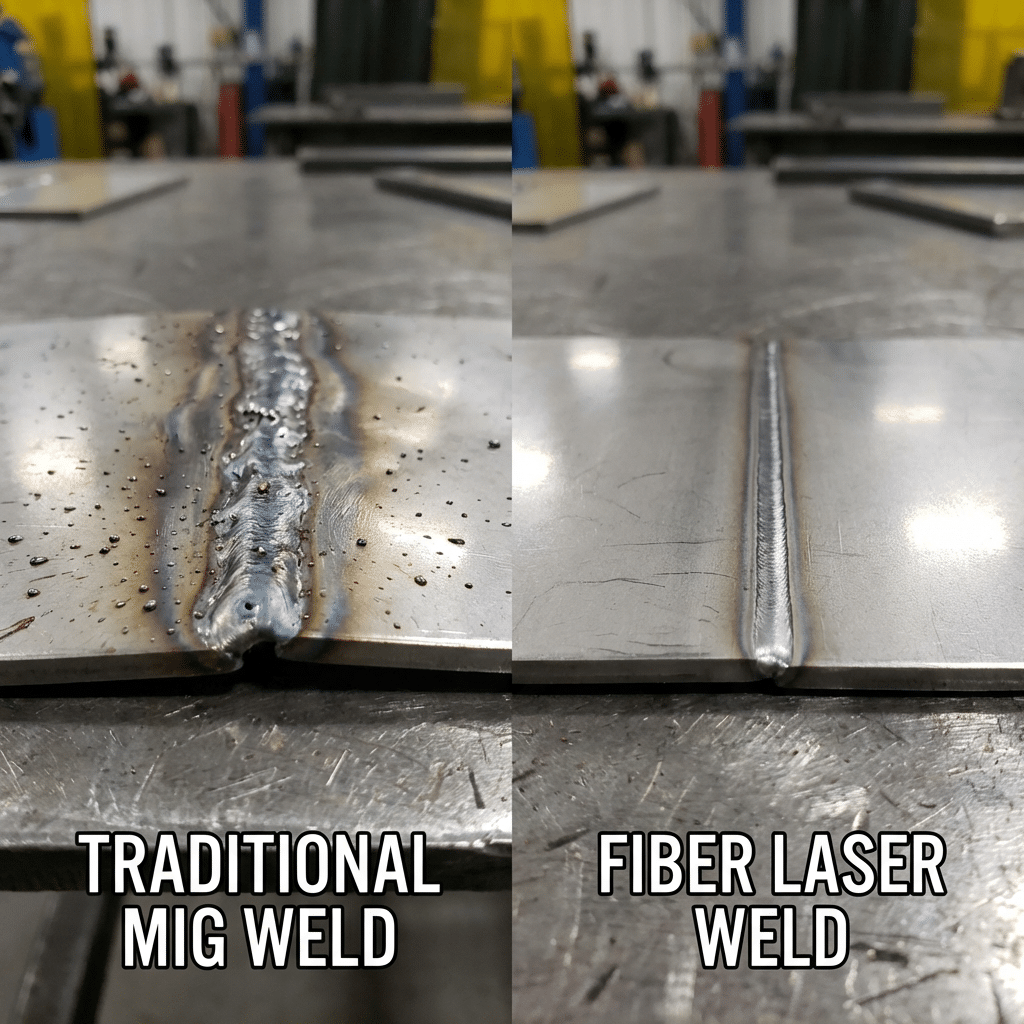

Mastering the art of laser weld stainless steel can dramatically increase your shop’s throughput. With 4x faster speeds than TIG and zero post-weld grinding, the ROI on a fiber laser welder is undeniable. If you are ready to upgrade your stainless steel fabrication workflow, explore our robotic and handheld solutions at laserscheme.com today.
