How Many Watts Does a Laser Need to Engrave Metal?

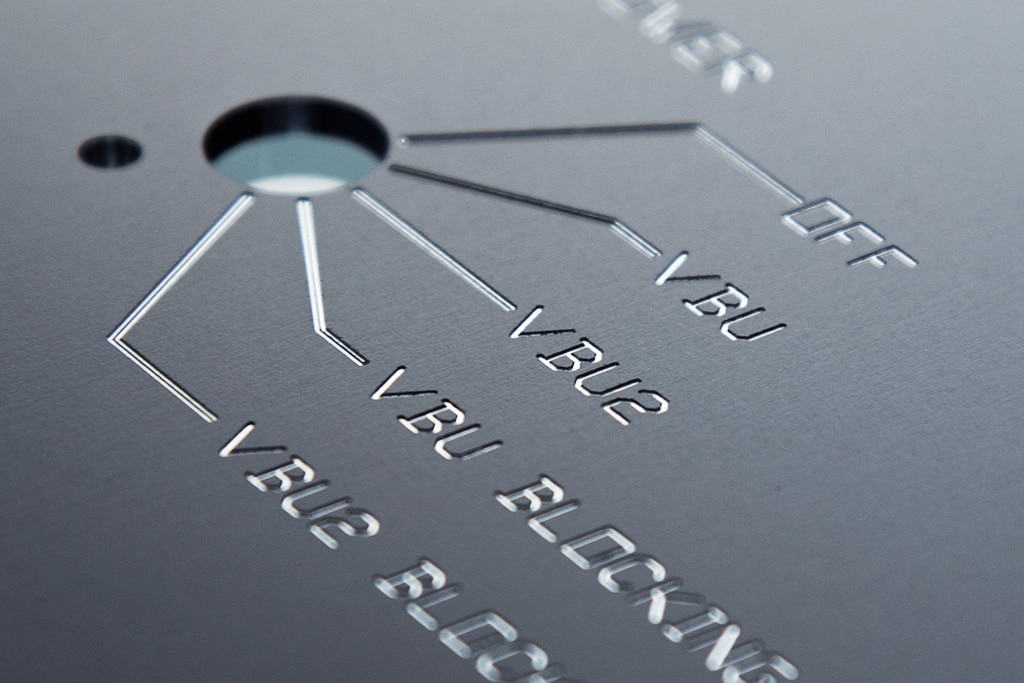

Many people use laser engraving to put marks on metal. The process works by pointing a powerful laser beam at the metal’s surface to create designs, company logos, or words. Choosing the right laser strength is very important when you want to make marks that are deep enough, clear to see, and done quickly. This article will help you understand how strong your laser needs to be for different types of metal and show you how to pick the right machine for your work.

What Is Laser Power?

Laser strength tells us how much energy the laser puts out each second. We measure this energy in units called watts, written as “W” for short. More watts mean the laser has more power to work with. Having lots of power lets you make deeper marks more quickly, but too much power can burn or damage the metal.

Here’s what different power levels can do. Low-power lasers work best for light markings or soft materials that damage easily. Strong lasers can cut deeper and work better on harder metals.

Factors Affecting Laser Power Requirements for Metal Engraving

Just the right amount of power is key. Different metals require different amounts of power because they handle heat and reflect light differently. Stainless steel needs at least 30 watts of power to make a good mark. If you’re just marking letters or a light pattern on aluminum, you’ll only need 20 watts. Copper requires more power – at least 30 watts – because it dissipates heat very quickly. Brass, on the other hand, needs medium power, between 20 and 30 watts, to make clear, deep marks.

The depth you want is also important. Deeper marks require more power to cut into the metal, while shallower marks can be accomplished with less power. The speed at which the laser is moved also changes things. If you want to move the laser quickly, you will need more power to make the same mark compared to a slower moving, less powerful laser. The thickness of the metal also has an effect. Thin stainless steel sheets require less power to make the same mark than thicker sheets.

Recommended Laser Power for Common Metals

Types of Laser Engraving Machines and Their Power Ranges

Let’s take a look at the different types of laser markers and their power. Fiber lasers are best suited for marking metals and range in power from 20 watts to 200 watts. These lasers are very precise when working with metals like stainless steel, brass and aluminum. The heat from a fiber laser stays where it is marked and does not spread to other areas of the metal.

Carbon dioxide lasers are a little different. They work better on non-metallic materials, but can also mark metals with special coatings at between 20 and 150 watts. Ultraviolet lasers are less common for metal processing. These lasers are not very powerful, only 3 to 10 watts, but they can make very small, precise marks without overheating the metal.

Detailed Guide: Engraving Stainless Steel、Aluminum and Copper

Most people want to use a laser to mark on stainless steel. There are some simple steps to follow to get good results on stainless steel. Use 30 to 50 watts of power, starting at half power and then adjusting in sequence. The laser should move about 300 millimeters per second. Keep the laser head close to the metal, at a distance of about 3 to 5 millimeters. Make sure your lines are close together, about 0.05 mm apart, to get a clear mark. Always test the settings on a spare piece of metal first.

Different metals require different settings to work well. Aluminum requires less power, between 20 and 30 watts. The laser can move faster on aluminum, up to 400 mm per second if you want a shallow mark. Using too much power on aluminum can damage it.

Copper is difficult to work with because it reflects light very well. A minimum of 30 watts of power is needed to mark copper correctly and the laser should move slower, at 200 mm per second. Brass is best marked with medium power, between 20 and 30 watts. When marking brass, the laser should move at a speed of around 300 millimeters per second, and you need to make sure that the laser beam is focused just right to get a clear, detailed mark.

Practical Steps to Adjust Laser Power

Here’s how to adjust your laser’s power step by step. Start by using half power and medium speed on a test piece of metal to see how it works. If the marks are too light on your test piece, slowly turn up the power until they’re as deep as you want them. Making the laser move more slowly helps when you want deeper marks or need to make detailed designs.

Keep checking that your laser is focused correctly. It’s smart to test your settings on scrap pieces of metal before working on your real project.

Choosing the Right Laser Engraver Power

When buying a laser engraving machine, there are a few things to consider first. Think about what metals you use most often and then choose a laser machine that is powerful enough to work with those materials. A more powerful machine will cost more, but will be able to do a wider variety of jobs. If you are going to be processing thicker or harder metals in the future, consider purchasing a more powerful machine.

Here’s what different power levels of lasers can do. 20-watt lasers can do basic marking on metals such as aluminum or stainless steel. 30-watt lasers give you more options for making deeper marks when you need them. 50-watt lasers can do tough jobs and can handle thicker pieces of metal. It’s important to test before you start the actual work. Different metals may react differently to the laser, even if they are the same type. The temperature and humidity of the room can also change how the laser works.

Conclusion

Let’s summarize what we’ve learned about laser power. The power you need depends on the type of metal you have, the depth you want to mark, and the speed at which you want to work. Most metal marking jobs are done well with lasers between 20 and 50 watts. Fiber lasers work best on metals because they are very precise and work well for many different tasks. Understanding how laser power, speed, and different metals work together can help get better results. This guide will help you pick the right laser and use it correctly for your project.
