Product Application

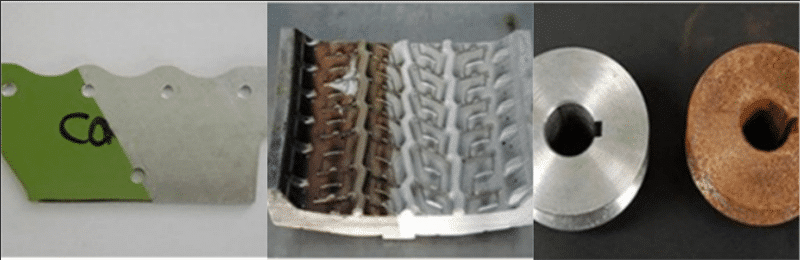

RL-CPL laser cleaning machine has a wide range of uses and performs well in various fields. It can be used for cleaning oil stains, cleaning paint on metal surfaces, cleaning rust on parts, removing welds, cleaning tire molds, removing oil stains on gears, cleaning clutch plates, and cleaning rust on rails. RL-CPL laser cleaner has high cleaning efficiency and low cleaning cost, and is one of the most cost-effective laser cleaning machines
Product Features
1. RL-CPL laser cleaning machine cleaning speed is fast and the cleaning efficiency is higher.
2. Uniquely designed portable detachable dust net,better air intake, dust proof and dirt-proof,easy to disassemble and maintain.
3.Touch screen, easy to operate,can be configured with various Parameters and controls real-time laser.
Service
Pre-Sales Service
After receiving your inquiry, we will promptly send you detailed product information and patiently address your questions.
If you’d like to see the machine in action, we can arrange a video conference to demonstrate its specific operations for you.
Additionally, we will recommend suitable machines based on the information you provide and customize specific appearances to meet your needs.
After-Sales Service
We offer online operation guidance, and if you require further assistance, we can visit your location to provide free on-site training.
In the event of any damage during transportation,we will send you a replacement machine at no charge.
Additionally,any issues with our machines that arise within two years, provided they are not due to intentional damage will be covered by us.
Product Details
LASER SOURCE
stable, efficient,Basically maintenance free.Good experience and low cost
COOLING AIR INLET
Uniquely designed portable detachable dust net,better air intake, dustproof and dirt-proof,easy to disassemble and maintain.
CONTROLLING SOFTWARE
1. There are more than 20 mainstream languages to choose from.
2. Important parameters such as laser power,pulse width,and light output frequency can be adjusted.
HIDDEN STORAGE
The compact design maximizes
the storage of accessories
TOUCH SCREEN
Touch screen, easy to operate,can be
configured with variousParameters
and controlsreal-time laser.
HANDHELD CLEANING HEAD
1. Field lenses of different sizes can be
replaced, and a variety of cleaning areas can be selected.
2.The ultra-mini portable cleaning head
weighs only 0.5KG.
USE POWER DIRECTLY
Universal 220v power supply, plug and play
ENVIRONMENTALLY FRIENDLY
Most environmentally friendly friendly
industrial cleaning method,portable
dust removal assist.
Product Parameters
| Main technical parameters of laser cleaning system | |
| Parameter name | Parameter value |
| Laser type | Pulsed fiber laser source |
| Maximum output power (W) | 200/100 |
| Center wavelength (nm) | 10641064 |
| Fiber Beam Quality M2 | less than 1.8 |
| Power adjustment range (%) | 10-100 |
| Output power instability (%) | less than 5 |
| Laser pulse frequency (kHz) | 20-2000 |
| Pulse length (ns) | 10, 30, 60, 240 for optional |
| Maximum single pulse energy (mJ) | 1 |
| Conductive fiber length (m) | 3 or 4 |
| Laser protection class | 4 |
| Cooling method | Air cooling |

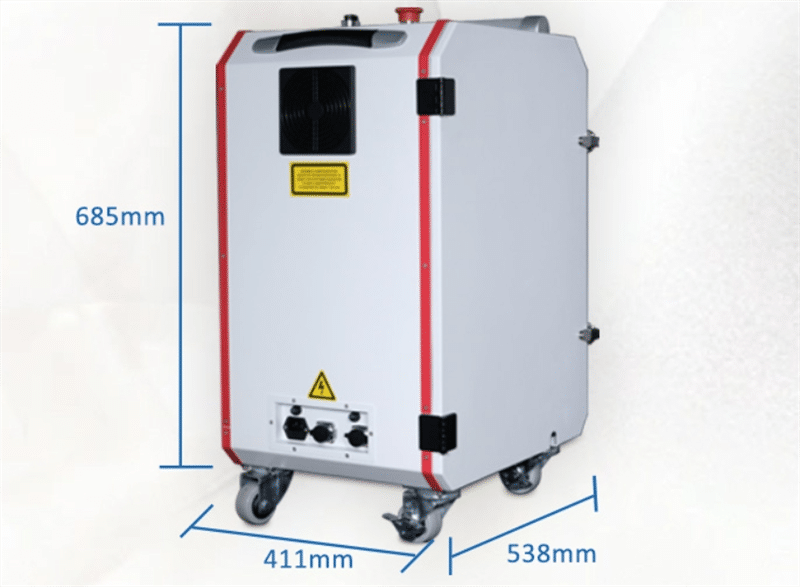

Product Size
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to your forwarder’s location.
Scenario 2: If you have customs clearance experience, we can assist you in contacting a freight forwarder.
Scenario 3: If you don’t have any customs clearance experience, we offer DDP service, where we will find a professional forwarder to deliver the product directly to your door.
FAQ
Q: If I want to become your distributor, can I get a discounted price?
A: Absolutely, we offer more favorable pricing for our distributors.
Q: Does the laser cleaning machine pose any harm to the human body?
A: Our laser cleaning machine is completely safe for the human body and also environmentally friendly.
Q: Can the laser cleaning machine remove paint from wood?
A: Yes, our laser cleaning machine can effectively remove paint from wood without damaging the wood’s surface.
