Product Application

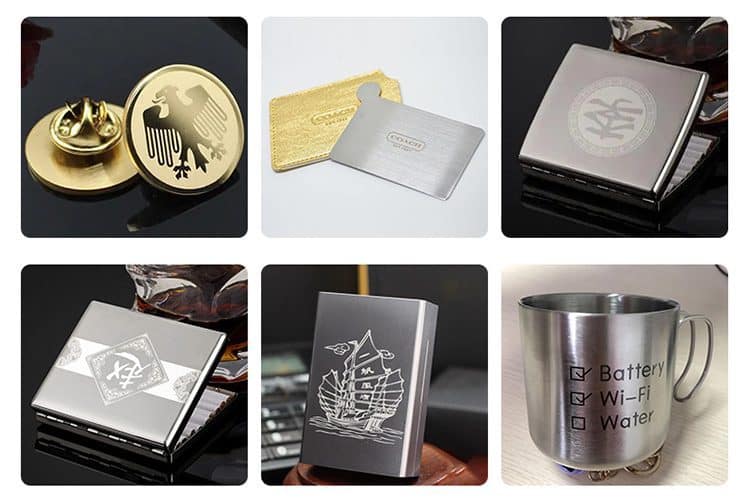

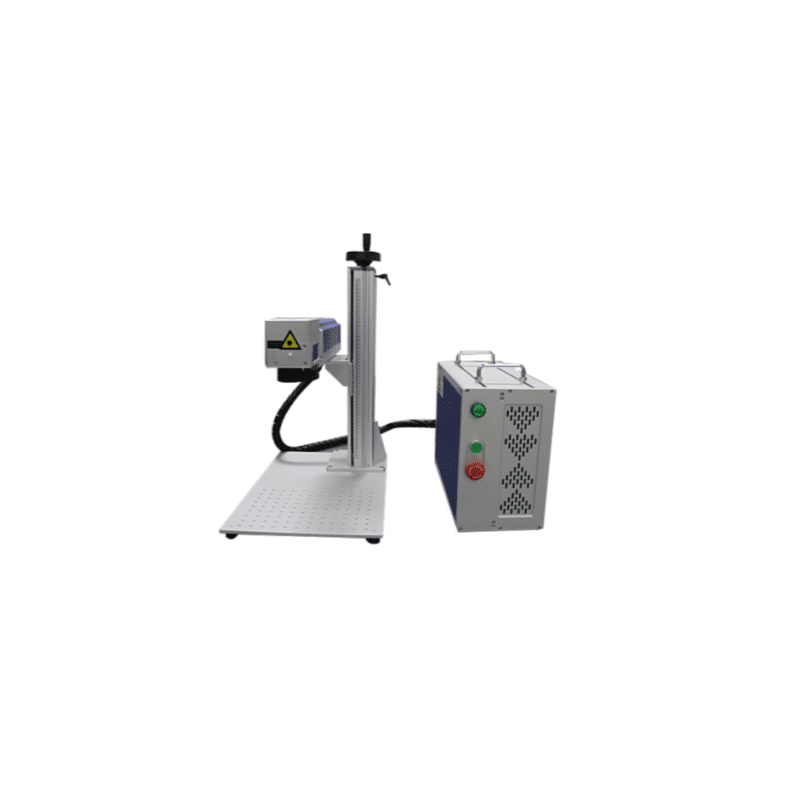

RL-20PS Portable Laser Marking Machine is a new generation of laser marking system, which adopts the most advanced laser technology at present, and has extremely high marking precision and excellent marking efficiency. It takes fiber laser marking machine as the laser source and adopts high-speed vibration mirror scanning technology to realize the marking function, which can engrave the pattern you want on metal, plastic, leather, dark glass, colorful ceramics, acrylic, stone and other materials.
Product Features
- Small size with less power consumption.
- Portable laser marking machine with high-speed scanner heads.
- Stable property.
- Long lifetime: life expectancy is 100,000 hours.
- No maintenance.
- Red light preview: show the marking position before marking.
Service
Pre-Sales Service
After receiving your inquiry, we will promptly send you detailed product information and patiently address your questions.
If you’d like to see the machine in action, we can arrange a video conference to demonstrate its specific operations for you.
Additionally, we will recommend suitable machines based on the information you provide and customize specific appearances to meet your needs.
After-Sales Service
We offer online operation guidance, and if you require further assistance, we can visit your location to provide free on-site training.
In the event of any damage during transportation,we will send you a replacement machine at no charge.
Additionally,any issues with our machines that arise within two years, provided they are not due to intentional damage will be covered by us.

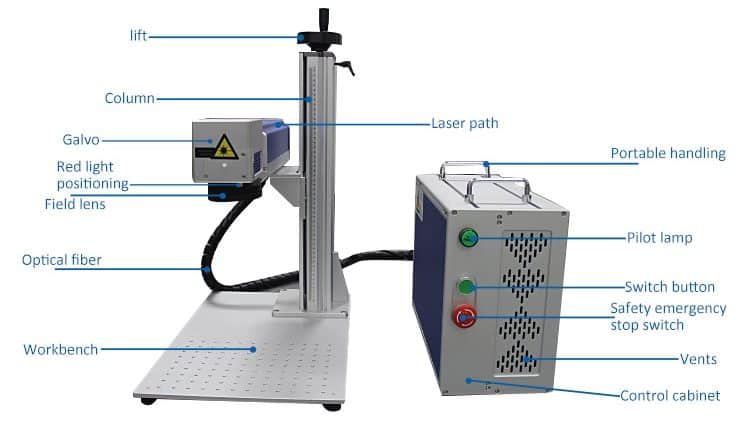

Product Details
Laser source
Stable laser power,long service life and good marking effect.
Galvo head
High focus,high stability,high precision low temperature, reduced delay, automatic
calibration.
Control system
Adopt advanced software with stable performance and high reliability. Software and parameter settings are included before the machine delivered.
Dual red light indicators
The double red light assists to correct the focal length, just simple adjustment,let the double red dots overlap to reach the focal length.
Field lens
High precision, fast speed, stable operation, galvanometer is a kind of marking action actuator, which can quickly scan the content that needs to be marked.
Workbench
All aluminum plate design,simple structure, flexible and adjustable.
Multiple column slots for marking at different positions.

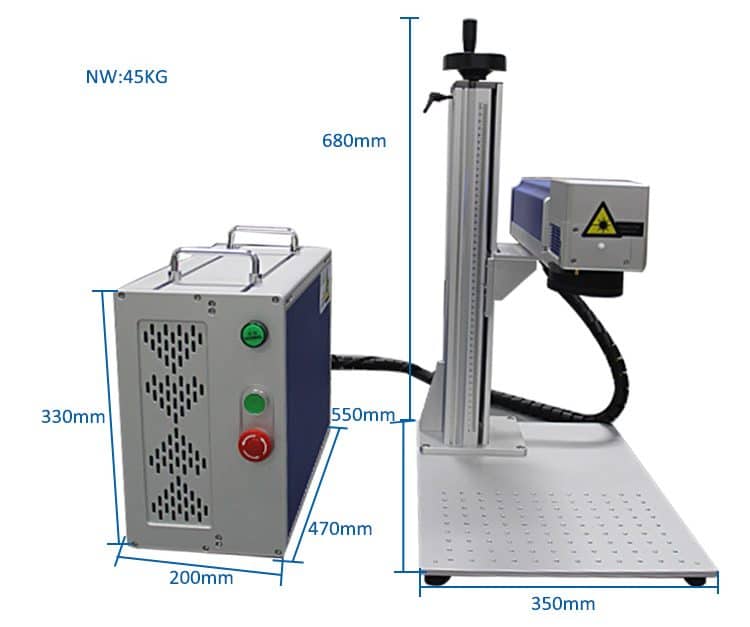

Product Size
Product Parameter
| Working Accuracy | 0.01mm |
| Laser Type | Fiber Laser |
| Cooling Mode | Air Cooling |
| Condition | New |
| Place of Origin | Guangdong,China |
| Laser Source Brand | RAYCUS/MAX |
| Weight (KG) | 20 KG |
| Key Selling Points | High Productivity |
| Warranty | 1 Year |
| Marking Area | 100mm*100mm—500mm*500mm |
| Mode of Operation | Pulsed |
| Configuration | bench-top |
| Feature | Air-cooled |
| Application | Laser Marking |
| CNC or Not | Yes |
| Brand Name | Riselaser |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 3 years |
| Core Components | Pressure vessel,Motor,Bearing,Gear,Pump,Gearbox,Engine,PLC |
| Product name | 20w 30w Split Desk Portable Type Fiber Laser Marking Machine |
| Laser Power | 20W /30w |
| Laser source | MAX RAYCUS |
| Applicable Material | Metal Materials |
| Keywords | Fiber Laser Markng Engraving Machine |
| Marking Area | 100mm*100mm—500mm*500mm |
| Machine type | Standard Desktop |
| Marking material | Metal Meta |
| Laser wavelength | 1064±5 nm |
| Warranty | 1 Year |
| Selling Units: | Single item |

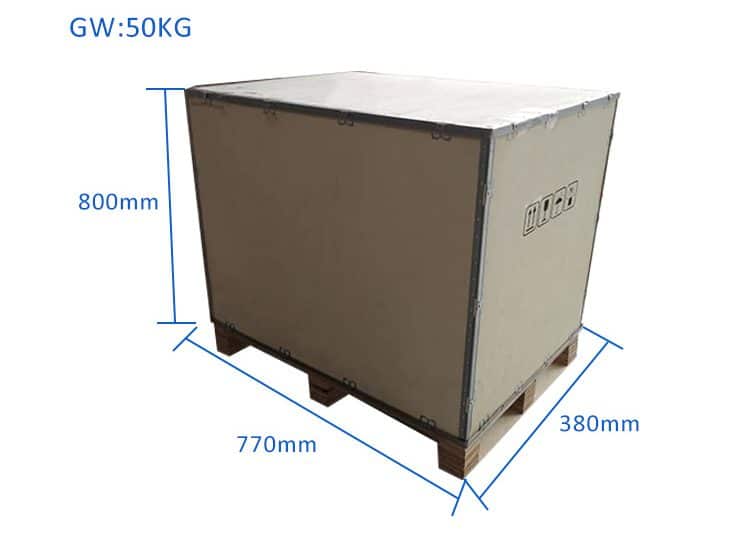

| Single package size: | 68X55X27 cm |
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to your forwarder’s location.
Scenario 2: If you have customs clearance experience, we can assist you in contacting a freight forwarder.
Scenario 3: If you don’t have any customs clearance experience, we offer DDP service, where we will find a professional forwarder to deliver the product directly to your door.
FAQ
Q: If I want to become your distributor, can I get a discounted price?
A: Absolutely, we offer more favorable pricing for our distributors.
Q: How long can the portable laser marking machine be used?
A: Theoretically, the life of our laser marking machine is 80,000 hours. In actual use, the life can usually reach more than 100,000 hours.
