Product Application
The RL-20AIO PRO FIBER LASER MARKING MACHINE guarantees high efficiency with excellent portability, making it easy for every employee to get started. It can accurately mark metallic and some non-metallic materials, and the working efficiency is 82.76% higher than other products on the market, which is one of the most cost-effective laser marking machines at present.
Product Features
- A variety of metal and non-metal materials can be processed by portable laser marking machines. It is clear that marking provides benefits, particularly for materials with high hardness, high melting points, and brittleness.
- Processing without contact prevents product degradation and tool wear.
- The marking quality is good, the processing material consumption is minimal, the processing heat-affected area is negligible.
- Computer control is used in portable laser marking machines, making automation simple to implement and maximizing processing effectiveness.
Service
Pre-Sales Service
After receiving your inquiry, we will promptly send you detailed product information and patiently address your questions.
If you’d like to see the machine in action, we can arrange a video conference to demonstrate its specific operations for you.
Additionally, we will recommend suitable machines based on the information you provide and customize specific appearances to meet your needs.
After-Sales Service
We offer online operation guidance, and if you require further assistance, we can visit your location to provide free on-site training.
In the event of any damage during transportation,we will send you a replacement machine at no charge.
Additionally,any issues with our machines that arise within two years, provided they are not due to intentional damage will be covered by us.
Product Parameters
| Working Accuracy | 0.001mm |
| Graphic Format Supported | AI,BMP,Dwg,DXF,PLT,Dst |
| Laser Type | Fiber Laser |
| Cooling Mode | Air Cooling |
| Condition | New |
| Place of Origin | Guangdong,China |
| Laser Source Brand | RAYCUS |
| Weight (KG) | 6.7 KG |
| Key Selling Points | Small size and lightweight |
| Warranty | 1 Year |
| Marking Area | 170mm*170mm |
| Mode of Operation | Pulsed |
| Configuration | bench-top |
| Feature | Air-cooled |
| Application | Laser Marking |
| CNC or Not | Yes |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 1 Year |
| Core Components | Laser source |
| Product name | Portable Desktop Laser Marking Machine |
| Laser source | Raycus |
| Laser Power | 20W |
| Applicable Material | Metal Aluminum Stainless Steel |
| After-sales Service Provided | Online Support |
| Keywords | Fiber Laser MarkngMachine |
| Cooling Mode | Air Cooled |
| Machine type | Mini Portable Laser Marker |
| Marking material | Metal Metal |
| Laser wavelength | 1064 |
| Selling Units: | Single item |
| Single package size: | 68.8X55.8X35.8 cm |
| Single gross weight: | 20.000 kg |

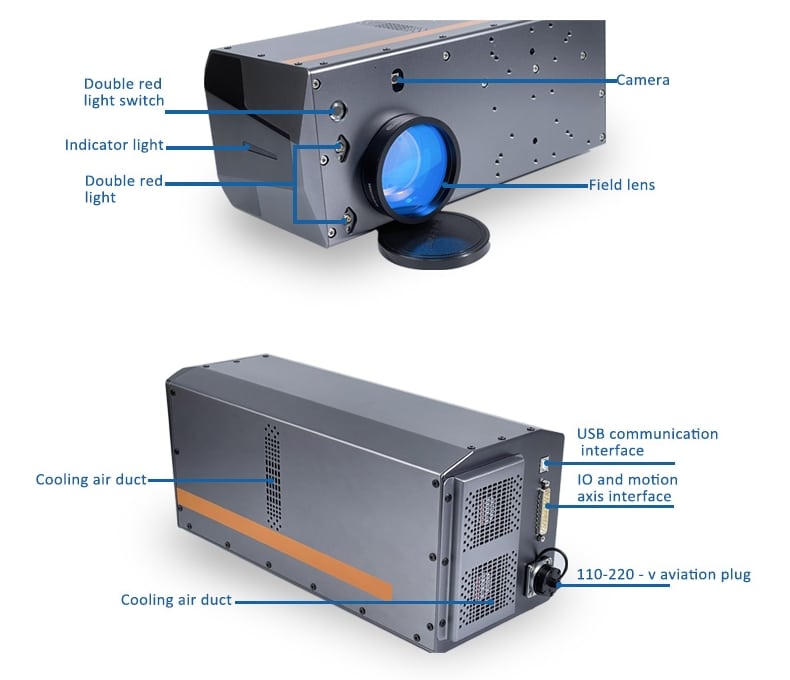

Product Details
Laser source
stable laser power long service life
and good marking effect

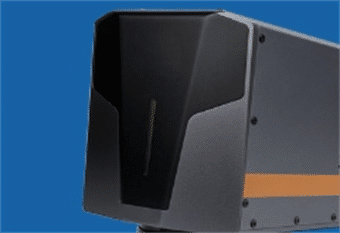

Galvo head
High focus,high stability,high precision,
low temperature, reduced delay,automatic calibration.

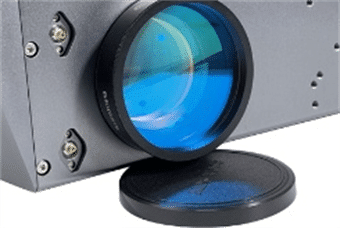

Field lens
High precision,fast speed,stable operation，For laser focusing, different field lenses correspond to different marking formats and working distances.

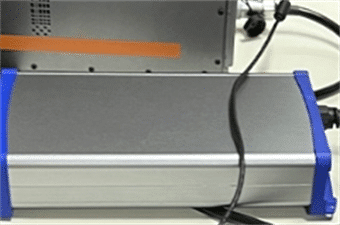

Power adapter
Power on the power
adapter after unpacking
Control system
Adopt advanced software with stable performance and high reliability
software and parameter settings are included before the machine delivered.

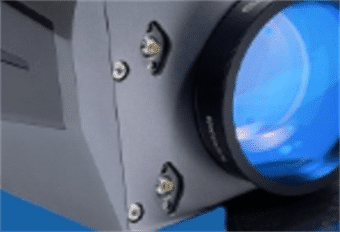

Double red light
The double red light assists to correct the focal length,just simple adjustment,let the double red dots overlap to reach the focal length.

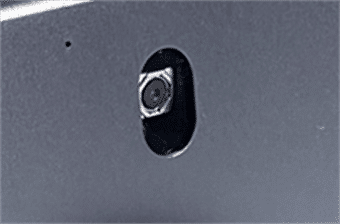

Camera
1920*1080 pixels, support background
display function,compatible with 174-254 field mirror.

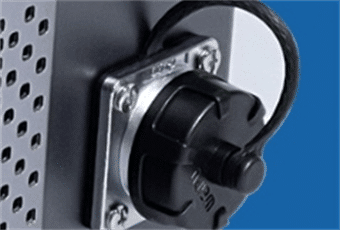

Aviation plug
It supports AC 110V-220V~50/6OHz
power supply. In order to prevent the
plug from being fooled,please be sure
to tighten it after plugging it so as not
to affect the use.

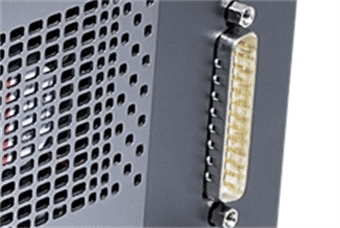

IO motion axis interface
Motion axis auxiliary is often required
for cylindrical, large format, loading and unloading requirements assisted laser marking
Cooling air duct
Double air duct whole body heat
dissipation,fast heat dissipation.

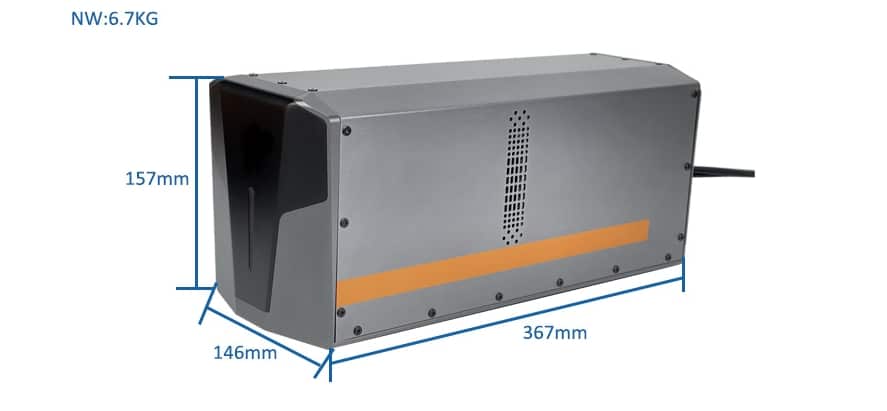

Product Size
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to your forwarder’s location.
Scenario 2: If you have customs clearance experience, we can assist you in contacting a freight forwarder.
Scenario 3: If you don’t have any customs clearance experience, we offer DDP service, where we will find a professional forwarder to deliver the product directly to your door.
FAQ
Q: If I want to become your distributor, can I get a discounted price?
A: Absolutely, we offer more favorable pricing for our distributors.
Q: Does the laser marking machine pose any harm to the human body?
A: Our laser marking machine is completely safe for the human body and also environmentally friendly.
Q: How long can the laser marking machine be used?
A: Theoretically, the life of our laser marking machine is 80,000 hours. In actual use, the life can usually reach more than 100,000 hours.
