Product Application
The RL-Y60 jewelry laser spot welder provides precise, clean welds for rings, earrings, and necklaces, ensuring seamless connections while preserving beauty and structure. It enables efficient repairs and supports gold, silver, and platinum welding, minimizing heat effects and maintaining the value of precious metals. Additionally, the RL-Y60 is widely used in phone accessories, watches, eyeglass frames, and electronic components.
Product Advantage
1, The laser power is provided with a function that allows power fade-in for seam head and power fade-out for seam end,so that the wielding seam is made better.
2, The wave form can be swiched over during welding for different kinds of complicated welding seam,especially for areas which requiring smaller welding spot.
3, Soft laser beam with better welding effect, energy-saving,more stable.
4, Used in welding titanium,nickel,tin,zinc,copper,aluminum,chrome,niobium, gold, sliver and many other metals and their alloy.Lt can also work on welding two different types of metal such as copper-nickel,nickel-titanium,copper-titanium, brass-copper and low carbon steel-copper.etc.
Service
Pre-Sales Service
After receiving your inquiry, we will promptly send you detailed product information and patiently address your questions.
Additionally, we will recommend suitable machines based on the information you provide and customize specific appearances to meet your needs.
After-Sales Service
We offer online operation guidance, and if you require further assistance, we can visit your location to provide free on-site training.
In the event of any damage during transportation,we will send you a replacement machine at no charge.
Additionally,any issues with our machines that arise within two years, provided they are not due to intentional damage will be covered by us.
Product Parameters
Laser System | RL-Y60 Jewelry Laser Spot Welder |
Laser Type | 1064nm YAG Laser |
Nominal Laser Power | 60W |
Beam Diameter | 0.5-3.0mm |
Pulse Width | 0.1-15ms |
Frequency | 1.0~10.0Hz Continuously Adjustable |
Maximum Laser Pulse Energy | 40J |
Host Power Consumption | ≤2.5KW |
Cooling System | Build in Water Cooling |
Aiming and Positioning | Microscope + CCD Camera System |
Operating Mode | Touch Control |
Pump Source | Single lamp |
Display Touch Screen | 10X high quality colorful CCD |
Electrical Connection Values | AC 110V/220V ± 5%, 50HZ / 60HZ |
Machine Dimension | RL-Y60: L51CM×W29.5CM×H42CM |
Wooden Package Dimension | RL-Y60: L63CM*W52CM*H54CM |
Machine Net Weight | 35KG |
Machine Gross Weight | 40KG |
Operating Environmental Temp | ≤45℃ |
Humidity | < 90% non-condensing |
Application | Welding and repairing all kinds of jewelry and accessories |

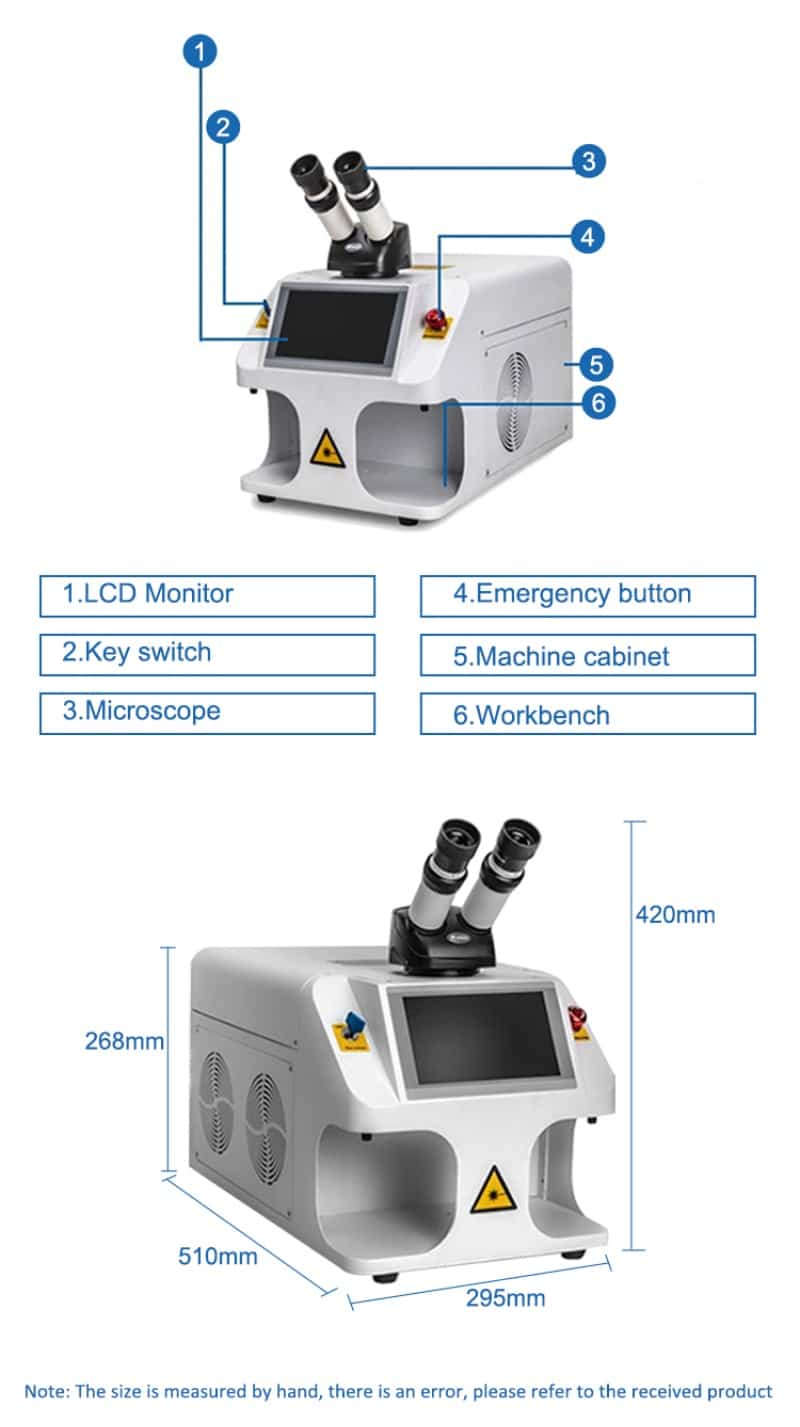

Product Display
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to your forwarder’s location.
Scenario 2: If you have customs clearance experience, we can assist you in contacting a freight forwarder.
Scenario 3: If you don’t have any customs clearance experience, we offer DDP service, where we will find a professional forwarder to deliver the product directly to your door.
FAQ
Q: If I want to become your distributor, can I get a discounted price?
A: Absolutely, we offer more favorable pricing for our distributors.
Q: Does the jewelry laser spot welder pose any harm to the human body?
A: Our jewelry laser spot welder is completely safe for the human body and also environmentally friendly.
Q:What is the lifespan of a laser welding machine?
A:In theory, the lifespan of our laser welding machines can reach up to 100,000 hours.
