Product Application

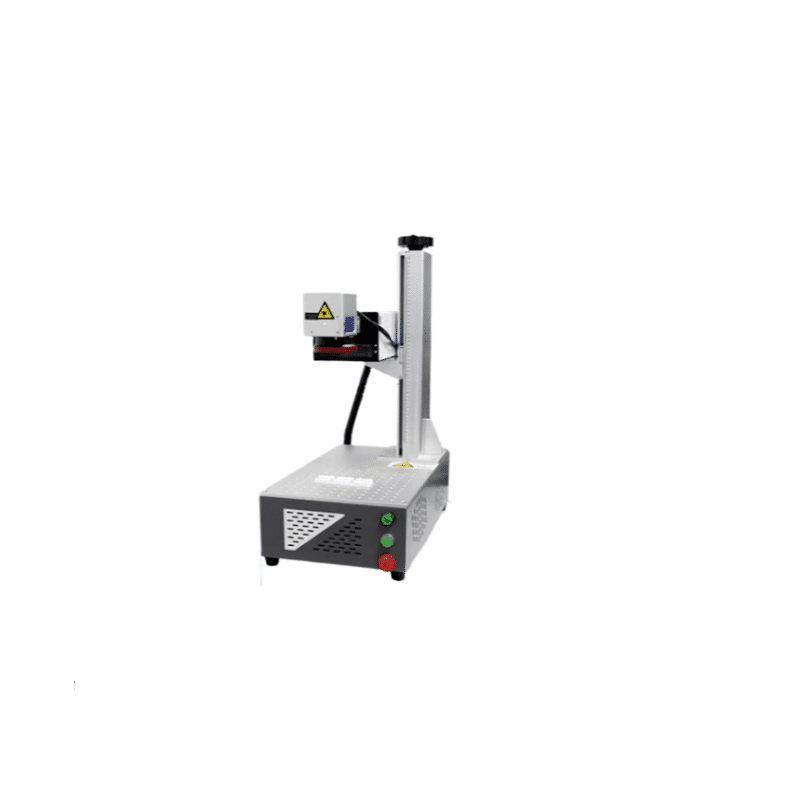

RL-UVM UV laser engraver machines is the multifunctionality and capacity of engraving over different materials, including metal materials and non-metal materials. This technology is also able to use the automatization system like rotary engraving, linear guide, engraving, conveyor engraving system, and camera capture system.
Service
Pre-Sales Service
After receiving your inquiry, we will promptly send you detailed product information and patiently address your questions.
Additionally, we will recommend suitable machines based on the information you provide and customize specific appearances to meet your needs.
After-Sales Service
We offer online operation guidance, and if you require further assistance, we can visit your location to provide free on-site training.
In the event of any damage during transportation,we will send you a replacement machine at no charge.
Additionally,any issues with our machines that arise within two years, provided they are not due to intentional damage will be covered by us.
Product Parameters
| Name | 3W/5W Portable UV Tabletop Laser Marking Machine Easy to carry uv 3w 5w small laser marking machine |
| Marking Area | 100*100mm-300*300mm(Option) |
| Working voltage | 0.5KW/AC220V/50Hz(option) |
| Lifting pillar | 500mm(customize) |
| Cooling system | Air Cooling |
| Minimum character | 0.1mm |
| Minimum line width | 0.01mm |
| Repeatability accuracy | 0.003mm |
| Resolution | 0.001mm |
| Marking speed | 0-7000mm/s |
| Output laser power | 20w~50W |
| Laser wavelength | 1064nm |
| Laser source | Fiber laser source |

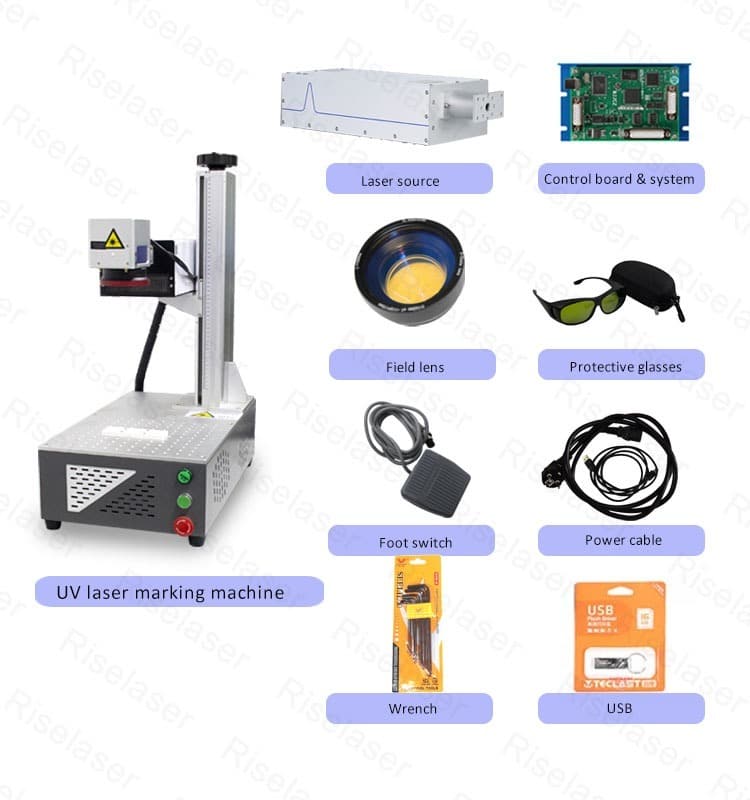

Product Accessories
- Laser source: Super cost-effective, directly installed galvanometer, compatible with fiber laser marking racks.
- Galvo Head: High focus, high stability, high precision, low temperature, reduced delay, automatic calibration.
- Field lens: imported lens material, high precision, fast and stable, it can quickly scan what you need It is marked
- Workbench: All aluminum plate design, simple structure, flexible and adjustable.Multiple column slots for marking at different positions.
- Control board:Adopt advanced software with stable performance and high reliability.Software and parameter settings are included before the machine delivered.
- Dual red light indicators: The double red light assists to correct the focal length, just simple adjustment, let the double red dotsoverlap to reach the focal length.
- Rotary fixture: Equipped with rotary table function easy mark on ring, bracelet etc curveditems.
- Control buttons: Protection control buttons,user-friendly control system,easy to operate.
- Large radiator area: Effectively cool the machine heat dissipation effectively improve working time and efficiency.
- Software: Graphics can be drawn in any shape,with hundreds of optional fonts. Laser parameter debugging is simple and convenient.Support dozens of flat software format import.
- Column: Manual lifting, easy rotation to adjust accuracy, more delicate engraving effect and more accurate calibration.
- Lift:High quality and stable, could adjusted up and down when marking different heights material.
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to your forwarder’s location.
Scenario 2: If you have customs clearance experience, we can assist you in contacting a freight forwarder.
Scenario 3: If you don’t have any customs clearance experience, we offer DDP service, where we will find a professional forwarder to deliver the product directly to your door.
FAQ
Q1: Are you a factory or a trading company ?
A1: We are a manufacturer established in 2015, located in Shenzhen. Committed to providing the majority of users with economic, high-quality laser equipment and we provide perfect OEM and after-sale service.Welcome to visit our factory.
Q2: How was the machine guarantee?
A2: We will provide 1 year warranty, and will supply free parts during the machine warranty period if the machine has some problems. If there is a problem with the machine, you can send it back to us to reissue a new machine/parts for you.Thus, any problems, just feel free to let us know, we will provide you with best solutions.
Q3: How can I use the machine, if I’m a new buyer?
A3: We will provide English(or other languages) manual and video for the machine you bought.The software is easy to learn with teaching video, also we provide online training services for free. If you still need our help, please contact us any time via voice all or video call both are available.
Q4: How do you control your quality?
A4: Quality is priority. The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before shipping out of factory. Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
Q5: How can I know your machine is designed for my product?
A5: You can send samples to us for marking to check the quality, we can help you to do sample testing.Free sample marking service is provided.
