Product Application
The welding gun has a compact design and small size, and a laser power of 2000W. It also allows easy lens replacement. In addition, it is used as a welding gun, providing a seamless solution for laser cleaning, welding and cutting, and other versatile applications. If you would like more information, please feel free to contact us.
Service
Pre-Sales Service
After receiving your inquiry, we will promptly send you detailed product information and patiently address your questions.
Additionally, we will recommend suitable machines based on the information you provide and customize specific appearances to meet your needs.
After-Sales Service
We offer online operation guidance, and if you require further assistance, we can visit your location to provide free on-site training.
In the event of any damage during transportation,we will send you a replacement machine at no charge.
Additionally,any issues with our machines that arise within two years, provided they are not due to intentional damage will be covered by us.
Product Details
Highly compact design
Highly compact welding gun with mini size,cover 3000w laser power,easily to change optical lens

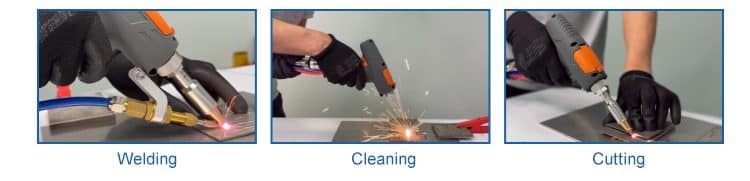

3 in 1 gun
Easy solution for laser clean, welding, cutting and cleaning 3 in 1

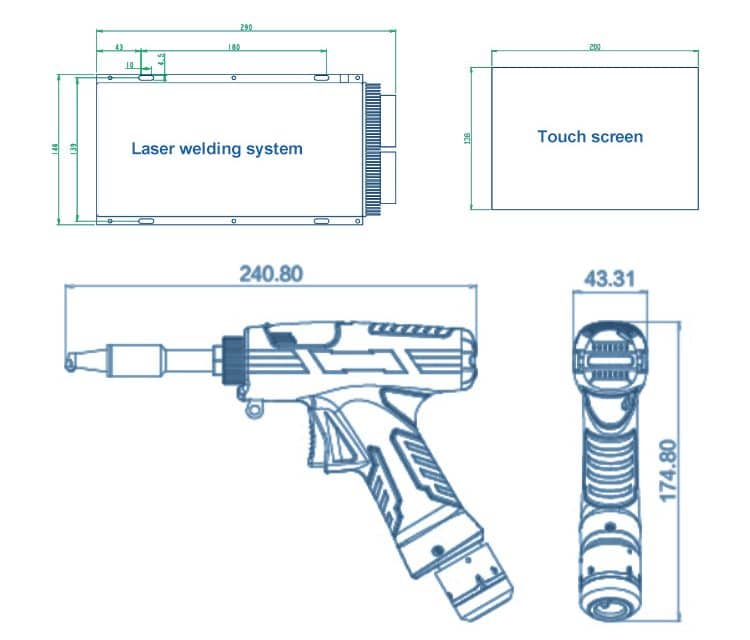

Product Size
Product Parameters
Supply Voltage (V) | 220士10% V AC 50/60Hz |
Place the environment | Flat, no vibration and shock |
Operating ambient temperature(°C) | 10~40 |
Working environment humidity(%) | <70 |
Cooling method | Water |
Applicable wavelength | 1064nm ( +10nm) |
Applicable power | ≤2000W |
collimation | D20*5/F60 |
focus | D20*4.5/F150 |
reflection | 30*14 T2 |
Protective glass specifications | 18*2 |
Maximum support air pressure | 10 bar |
Focus vertically adjusts the range | Taxi 10mm |
Spot adjustment range | Line 0-5 mm |
weight | SUP 20S 0.8 kg |
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to your forwarder’s location.
Scenario 2: If you have customs clearance experience, we can assist you in contacting a freight forwarder.
Scenario 3: If you don’t have any customs clearance experience, we offer DDP service, where we will find a professional forwarder to deliver the product directly to your door.
FAQ
Q1: Are you a factory or a trading company ?
A1: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q2: How was the machine guarantee?
A2: We offer you 12 months guarantee.
Q3: How can I use the machine, if I’m a new buyer?
A3: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Q4: How do you control your quality?
A4: We’ll test the machine before the shipment, and let it go through every corner to check the accuracy. Machines can not be dispatched until finished machine pass all essential complicated test after running at least two days without stopping to ensure quality.
Q5: How can I know your machine is designed for my product?
A5: You can send us samples of your product and we test it on machine.
