Product Application
RL-H3030P is a high-precision fiber laser cutting machine that uses a focused, high-power fiber laser to cut materials with extreme accuracy and precision. It is capable of cutting a wide range of materials such as metals, plastics and wood at high speeds and with high efficiency. The machine is low maintenance, energy efficient and produces minimal scrap. It also provides a high degree of control over the cutting process, making it easy to accomplish complex designs.
Product Features
- Multiple Recycling to ensure a low loss rate
Water sink for cutting part buffering
2-layer filter from air recycler
Water filter for final collection - Stable Power Output during Cutting Process
- 10X Peak Power from QCW Laser Source
- High Cutting Speed and Efficiency with Fine Edges
- Low Operation
Service
Pre-Sales Service
After receiving your inquiry, we will promptly send you detailed product information and patiently address your questions.
Additionally, we will recommend suitable machines based on the information you provide and customize specific appearances to meet your needs.
After-Sales Service
We offer online operation guidance, and if you require further assistance, we can visit your location to provide free on-site training.
In the event of any damage during transportation,we will send you a replacement machine at no charge.
Additionally,any issues with our machines that arise within two years, provided they are not due to intentional damage will be covered by us.

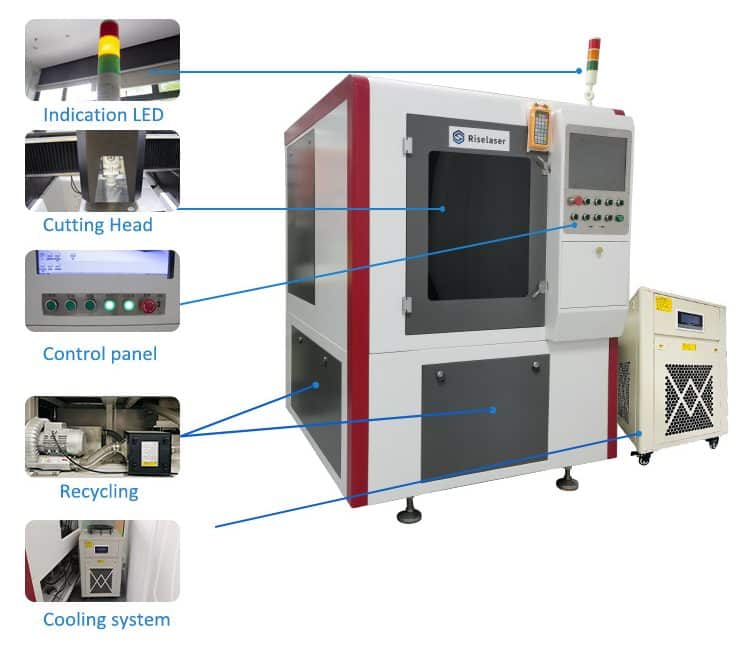

Product Details

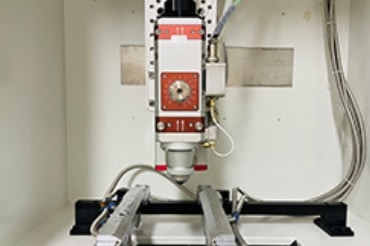

CUTTING HEAD
Fast focusing speed/high precision/Collimating protective mirror dust-proof design, it fully protects the internal optical Components and prolongs the service life.
CUTTING SOFTWARE
Cutting software includes CNC system, programmable controller,
ENCLOSURE DESIGN
Fully enclosed design, the laser protective and the powerful dust removal system does not pollute the environment.

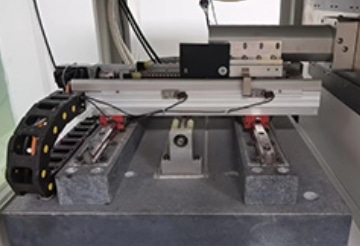

XYZ AXIS DRIVE CONFIGURATION
With the xyz axis configuration,it runs faster and cuts more accurately,ensuring a straight cut without wavy lines.
LASER SOURCE
Internationally famous laser source(Bwt/Max/Raycus/JPT),stable laser power, long lfe, good welding effect and beautiful welding seam.

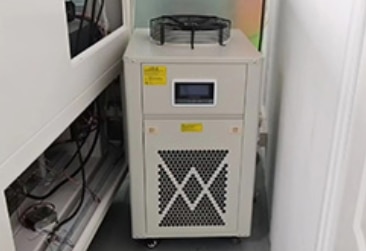

WATER COOLING
Constant temperature cold water machine condensation and rapid cooling, to ensure the constant temperature.

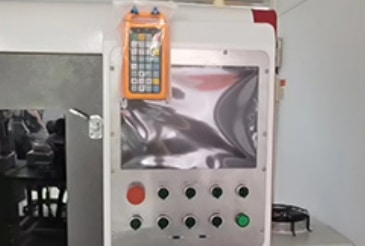

OPERATE REMOTE CONTROL
Remote operation without touching the machine tool.
INDICATION LED
The indicatorlight has 3 colors.
Green:The machine is operating normally.
Yellow: The machine is working.
Red: The machine malfunction alarm.
Product Parameters
Model | RL-H3030P | |
Laser Source | 1064nm YAG Laser 1000W | |
X&Y-Axis Working Area | 300*300mm | |
X&Y Axis Positioning Accuracy | ±0.05mm | |
X&Y Axis Repeatability | ±0.05mm | |
Maximum Speed | 30m/min | |
Acceleration | 0.8g | |
Motor + Drive | AC Servo Yaskawa | |
Oil Circuit | Auto-fill | |
Air Supply | SMC Oxygen Proportional Valve | |
Recycling Device | 200W Dust Collection, Water Sink, 2-Level Air Filter | |
Linear Guiderail + Screw | HIWIN | |
Electrical Circuit | Schneider Components Built-in | |
Display | 19″ | |
Operation OS | Windows 10 | |
Control System | FSCUT1000 | |
Cutting Head | OSPRI | |
Water Chiller | BY | |
Power Supply | 3-Phase AC380V ± 5%, 50HZ / 60HZ | |
Power Consumption | 1500W | |
Machine Dimension | D1500*W1250*H1750mm | |
Packaing Dimension | D800*W1500*H2050mm | |
Machine Net Weight | 850kg | |
Wooden Package Weight | 1100kg | |
Application | Precious Metal Cutting | |

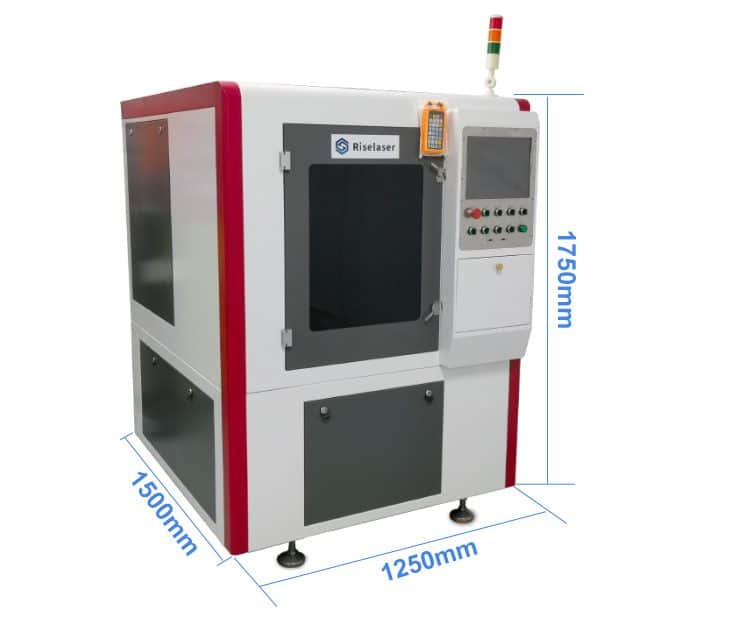

Product Size
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to your forwarder’s location.
Scenario 2: If you have customs clearance experience, we can assist you in contacting a freight forwarder.
Scenario 3: If you don’t have any customs clearance experience, we offer DDP service, where we will find a professional forwarder to deliver the product directly to your door.
FAQ
Q: If I want to become your distributor, can I get a discounted price?
A: Absolutely, we offer more favorable pricing for our distributors.
Q: How long is the life of a laser cutting machine?
A: Theoretically, a laser cutting machine can be used for more than 100,000 hours.
Q: Are you a factory?
A: Yes, we are a company that develops, produces, and sells laser machines.
