Product Application
Our RL-FR01 offers faster welding speeds, high efficiency, and reduced costs, making it ideal for various industries. With precise control and stable performance, it ensures accurate and repeatable actions, perfect for high-accuracy applications. As a result, it is widely used in automotive manufacturing, construction engineering, and aerospace industries.
Weldable materials and maximum welding thickness are:
Stainless steel plate 0-8mm
Carbon steel plate 0-8mm
Aluminum plate 0-5mm
Copper plate 0-5mm
Product Features

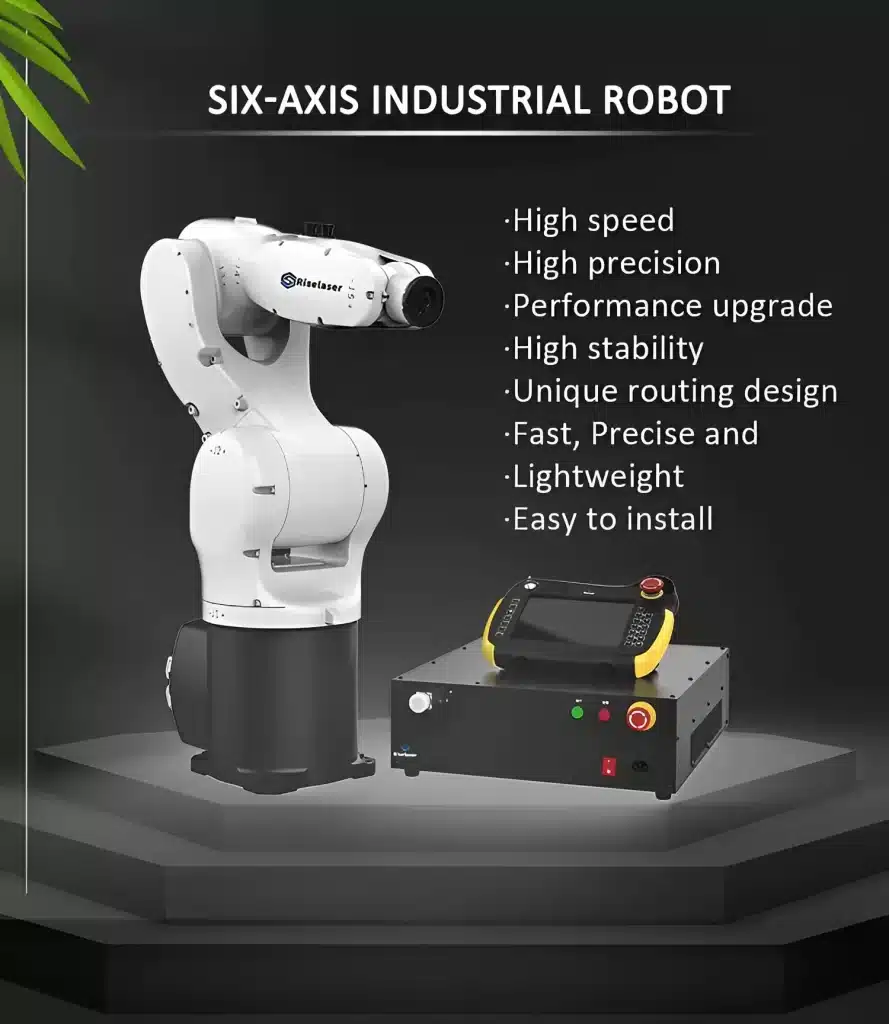

The six-axis industrial robot offers high efficiency, speed, and precision for diverse tasks. Its upgradeable performance, stability, and smooth routing design enhance flexibility. Easy installation makes it a convenient choice, appealing to businesses aiming to boost productivity. Contact us for more product information.
- High rigidity: Through the optimization of the robot arm topology the high rigidity and low inertia arm body are realized. The horizontal cabling method greatly reduces the space of the robot envelope and facilitates the customer system layout and use.
- Beautiful shape: Robot body with a screw-free design concept with a beautiful streamlined shape shaping the industrial works of art.
- The selection covers a wide range: Support custom.
Service
Pre-Sales Service
After receiving your inquiry, we will promptly send you detailed product information and patiently address your questions.
Additionally, we will recommend suitable machines based on the information you provide and customize specific appearances to meet your needs.
After-Sales Service
We offer online operation guidance, and if you require further assistance, we can visit your location to provide free on-site training.
In the event of any damage during transportation,we will send you a replacement machine at no charge.
Additionally,any issues with our machines that arise within two years, provided they are not due to intentional damage will be covered by us.
Product Parameters
| Model | RL-FR01 |
| Arm form | Six-axis multi-joint |
| Freedom of movement | 6 axis |
| Maximum load | 3KG |
| Wingspan | 560mm |
| Repeatability | ±0.02mm |
| Body weight | 23kg |
| Installation method | Floor Mount, Wall Mount, Flip Mount |
| Control cabinet size width*height*depth(mm) | 420x133x472(Second generation compact cabinet |
| Function | Manual Welding |
| Model | RL-FR01 | |
| Arm Stroke | 1-6 Axis | 560mm |
| Payload | Max load | 3kg |
Movement speed | J1 Axis | 450°/s |
| J2 Axis | 450°/s | |
| J3 Axis | 525°/s | |
| J4 Axis | 600°/s | |
| J5 Axis | 600°/s | |
| J6 Axis | 800°/s | |
| Repeat Positioning Accuracy | ±0.02mm | |
| Standard IO quantity | 16DI/16DO(PNP) | |
| Power | 2.2KVA | |
| Arm protection level | IP65 | |
| Control cabinet protection level | IP20 (IP54 shield is optional) | |
| Body weight | 23KG | |
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to your forwarder’s location.
Scenario 2: If you have customs clearance experience, we can assist you in contacting a freight forwarder.
Scenario 3: If you don’t have any customs clearance experience, we offer DDP service, where we will find a professional forwarder to deliver the product directly to your door.
FAQ
1.How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2.Packaging
All our machines are packed in wooden boxes.
3.Language interface
Supports language customization, etc. You can also translate and insert to software.
