Product Description

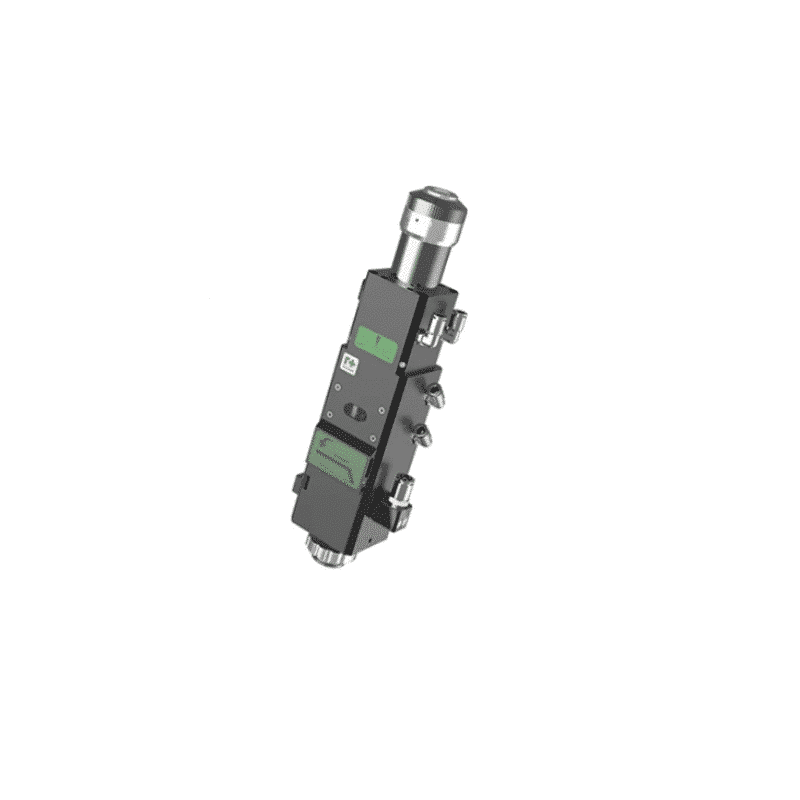

RL-CH is an optical fiber cutting head designed by Switzerland RAYTOOLS AG. It is suitable for small and medium power (up to 3300W) fiber lasers in industrial applications. It is of an overall optimized optical focusing system, annular air path and turbulent air flow and nozzle cooling design, built-in water cooling unit, and fine adjustment of focus position. If you are interested in our products, please contact us for a quotation.
Product Advantages
- Highly dustproof:The dustproof grade is IP65, and the light path is fully enclosed, so the possibility of lens contamination is almost zero.
- Adjustable zero focus:The scale can be adjusted flexibly to unify the zero focal position, and no longer worry about adjusting process parameters.
- Efficient water cooling:The focusing lens, collimating lens and nozzle have built-in cooling function, which can solve the problem of cutting heating.
- Optimize structure design:Integrated body design, improved QBH optical fiber interface no longer stuck due to water leakage and rust.
Service
Pre-Sales Service
After receiving your inquiry, we will promptly send you detailed product information and patiently address your questions.
Additionally, we will recommend suitable machines based on the information you provide and customize specific appearances to meet your needs.
After-Sales Service
We offer online operation guidance, and if you require further assistance, we can visit your location to provide free on-site training.
In the event of any damage during transportation,we will send you a replacement machine at no charge.
Additionally,any issues with our machines that arise within two years, provided they are not due to intentional damage will be covered by us.

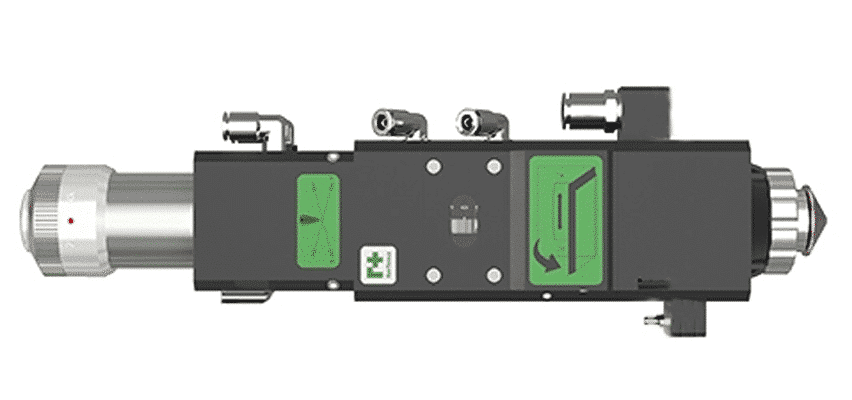

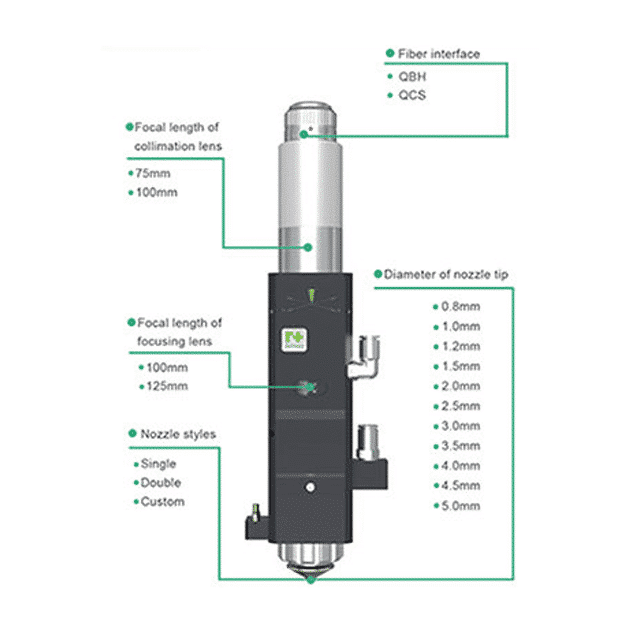

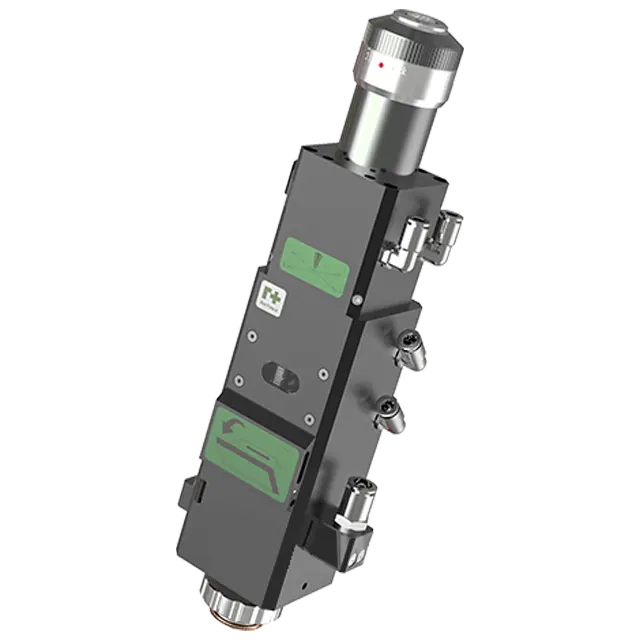

Product Display

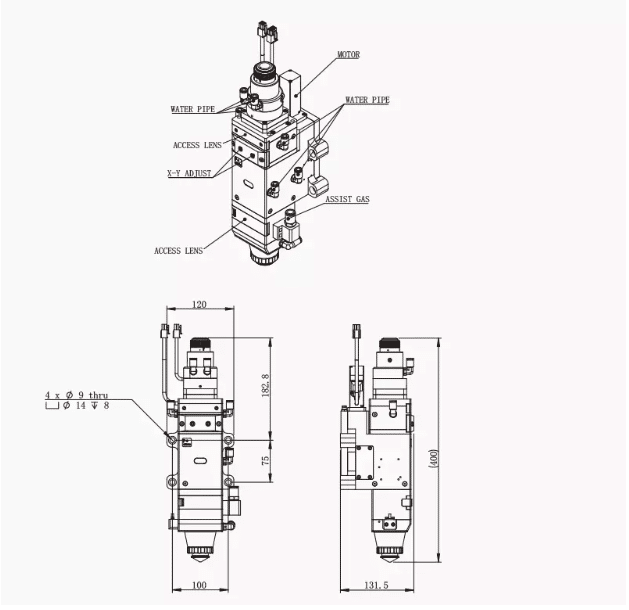

Product Parameters
Minimum flow rate | 1.8 liters/minute (0.48gpm) |
Inlet water pressure | 170-520kPa (30-60 psi) |
Inlet water temperature | ≥room temperature/＞dew point |
Water hardness (relative to CaCO3) | <250mg/liter |
pH range | 6 to 8 (deionized water or distilled water) |
Passable particle size | ≤ 200 μm in diameter |
Matters Needing Attention
- Lens cleaning:Due to the processing characteristics of laser cutting, regular maintenance of the lens is required. It is recommended that the
- protective lens, collimator lens and focusing lens be cleaned once a week.
- Tools used: dustproof gloves, finger cots, polyester cotton swabs, ethanol, rubber air blower.
- Cleaning method:
1. Wear finger cots on the left thumb and index finger.
2. Spray ethanol on the polyester cotton swab.
3. Gently pinch the side edge of the lens with the thumb and index finger of your left hand. (Note that the finger cot cannot touch the surface of the lens to avoid leaving marks)
4. Place the lens facing your eyes, hold the polyester cotton swab in your right hand, and wipe the surface of the lens from bottom to top. Clean the front and back sides. After cleaning, reconfirm that there are no residues of the following: detergent,floating dust, foreign matter.
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to your forwarder’s location.
Scenario 2: If you have customs clearance experience, we can assist you in contacting a freight forwarder.
Scenario 3: If you don’t have any customs clearance experience, we offer DDP service, where we will find a professional forwarder to deliver the product directly to your door.
