Product Application
CO2 flying laser printer is suitable for online marking of most non-metallic materials, such as paper packaging, film packaging, plated metal, plexiglass, resin, plastic, bamboo and wood products, PVC products.Laser marking on the fly for continuous production lines, marking “on the fly” offers great solution flexibility by enabling marking/engraving of the product while it is moving.
Service
Pre-Sales Service
After receiving your inquiry, we will promptly send you detailed product information and patiently address your questions.
Additionally, we will recommend suitable machines based on the information you provide and customize specific appearances to meet your needs.
After-Sales Service
We offer online operation guidance, and if you require further assistance, we can visit your location to provide free on-site training.
In the event of any damage during transportation,we will send you a replacement machine at no charge.
Additionally,any issues with our machines that arise within two years, provided they are not due to intentional damage will be covered by us.

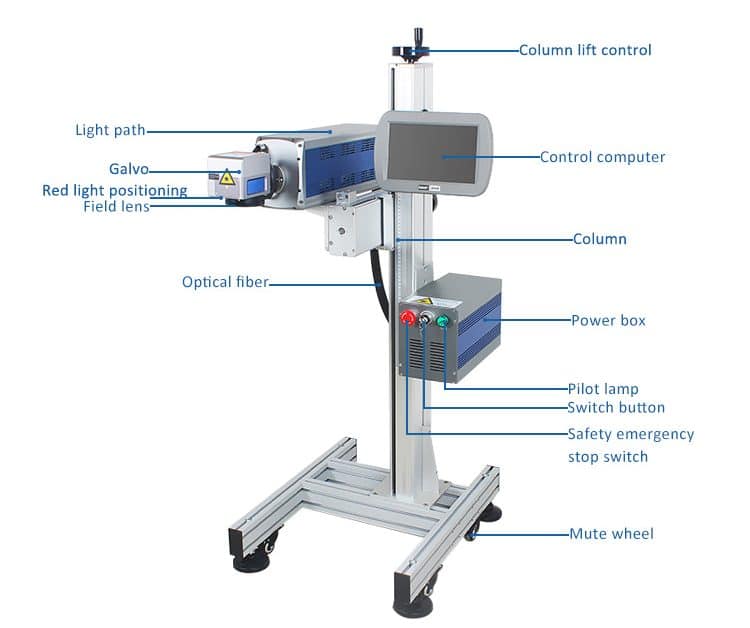

Product Detail
Laser beam
Compact laser marking head for easy integration, reduced installation costs and increased positioning flexibility.

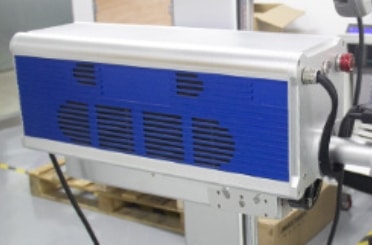

Power box
Humanized control system, simple operation, safe and convenient, dust-proof design.
Galvo
High focus, high stability, high precision, low temperature, reduced delay, automatic calibration
Dual red light indicators
The double red light assists to correct the focal length,just simple adjustment,let the double red dots overlap to reach the focal.
Field lens
High precision, fast speed, stable operation galvanometer is a kind of marking action actuator, which can quickly scan the content that needs to be marked.
Scale ruler
The axis with scale can be adjusted up and down, left and right,the marking head rotates 360°formarking.
Touch computer
Built-in control system, powerful, various data optimizations are possible
processed according to different processes, support multi language one-key switching
Column lift control
Adjust lift,easy rotation adjustment Precise,more delicate engraving effect,more precise calibration.
Product Parameters
Output power | 30W | 60W |
Beam quality M2 | ≤1.2 | ≤1.2 |
Laser wavelength | 10.6 um | 10.6 um |
Pulse frequency | 0-25 kHz | 0-200 kHz |
Exit beam diameter | 1.8±0.2 mm | 1.8±0.2 mm |
Output power stability | ±5% | ±5% |
Design life | about 20,000 working hours (non-life) | |
Marking range | 100~300mm (range optional) | |
Engraving depth | ≤1mm (depending on power and time) | |
Engraving speed | ≤10000mm/s | |
Repeatability | ±0.002 | |
Minimum mark line width | 0.1mm | |
Minimum character height | 0.15mm | |

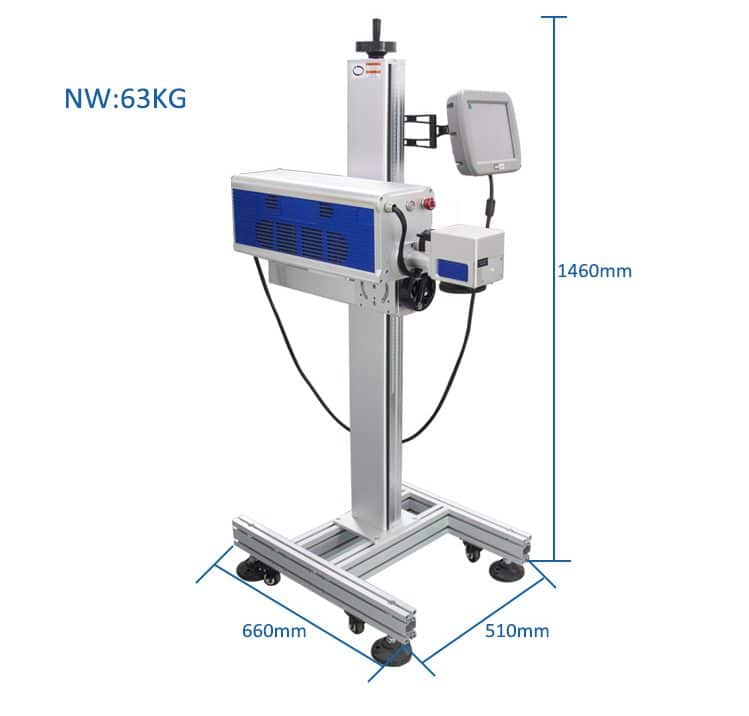

Product Size

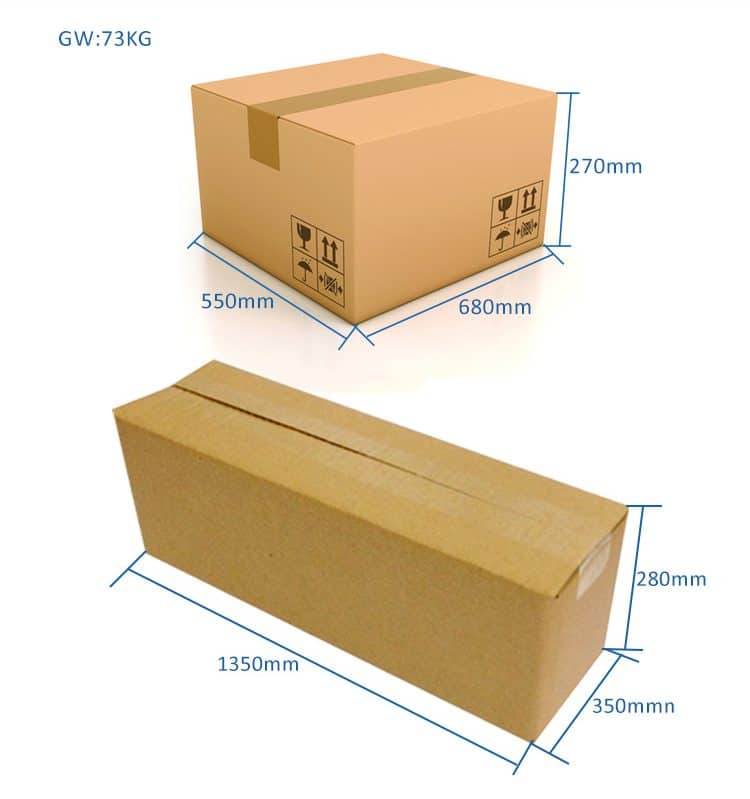

Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to your forwarder’s location.
Scenario 2: If you have customs clearance experience, we can assist you in contacting a freight forwarder.
Scenario 3: If you don’t have any customs clearance experience, we offer DDP service, where we will find a professional forwarder to deliver the product directly to your door.
FAQ
Q1: Are you a factory or a trading company ?
A1: We are a manufacturer established in 2015, located in Shenzhen. Committed to providing the majority of users with economic, high-quality laser equipment and we provide perfect OEM and after-sale service. Welcome to visit our factory.
Q2: How was the machine guarantee?
A2: We will provide 1 year warranty, and will supply free parts during the machine warranty period if the machine has some problems. If there is a problem with the machine, you can send it back to us to reissue a new machine/parts for you.Thus, any problems, just feel free to let us know, we will provide you with best solutions.
Q3: How can I use the machine, if I’m a new buyer?
A3: We will provide English(or other languages) manual and video for the machine you bought.The software is easy to learn with teaching video, also we provide online training services for free. If you still need our help, please contact us any time via voice all or video call both are available.
Q4: How do you control your quality?
A4: Quality is priority. The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before shipping out of factory. Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
Q5: How can I know your machine is designed for my product?
A5: You can send samples to us for marking to check the quality, we can help you to do sample testing. Free sample marking service is provided.
