Product Application
The RL-FAM 3 in 1 handheld laser welder, featuring 3 modes—welding, cleaning, cutting—can effectively weld materials such as stainless steel, aluminum, carbon steel, and copper.In addition to welding, its cleaning and cutting functions are also not to be underestimated. It is an all-round 3 in 1 handheld laser welding machine.
The maximum welding thickness for：
Aluminum sheet 0-5mm
Stainless steel sheet 0-8mm
Carbon steel sheet 0-8mm
Copper sheet 0-5mm
If you would like to learn more, please feel free to contact us.
Product Advantages
- Handheld laser welder 3 modes: welding, cleaning, cutting.
- Riselaser double wobble head has multiple welding modes: point, line, circle, triangle, ellipse,semi-circle, and eight-character.
- Welding head with touch screen to adjust parameters.
- 2KW can weld 6mm thick stainless steel and carbon steel without adding welding wire.
- Support customization:make your own logo/design the appearance of the machine.
- The whole machine is guaranteed for one year, and online technical support after-sales.
- No MOQ request,Wholesale price.Please contact us for wholesale price.
Service
Pre-Sales Service
After receiving your inquiry, we will promptly send you detailed product information and patiently address your questions.
Additionally, we will recommend suitable machines based on the information you provide and customize specific appearances to meet your needs.
After-Sales Service
We offer online operation guidance, and if you require further assistance, we can visit your location to provide free on-site training.
In the event of any damage during transportation,we will send you a replacement machine at no charge.
Additionally,any issues with our machines that arise within two years, provided they are not due to intentional damage will be covered by us.
Product Display
Video Display
Product Parameters
| Model No | RL-FAM1500 | RL-FAM2000 | RL-FAM3000 |
| Operating Mode | Continuous Modulation | ||
| Cooling Mode | Water Cooling | ||
| Power Requirements | 220V±5V 50Hz/40A | ||
| Machine Power | 7KW | 9KW | 12KW |
| Operating Cooling Temperature Range | 20℃-40℃ | ||
| Working Environment Humidity Range | <70 No Condensation | ||
| Welding Thickness | ≤3mm | ≤6mm | ≤8mm |
| Gross Weight(Including Package) | 160Kg | ||
| Fiber length | 10m | ||
| Machine Size | 100×45×68CM | ||

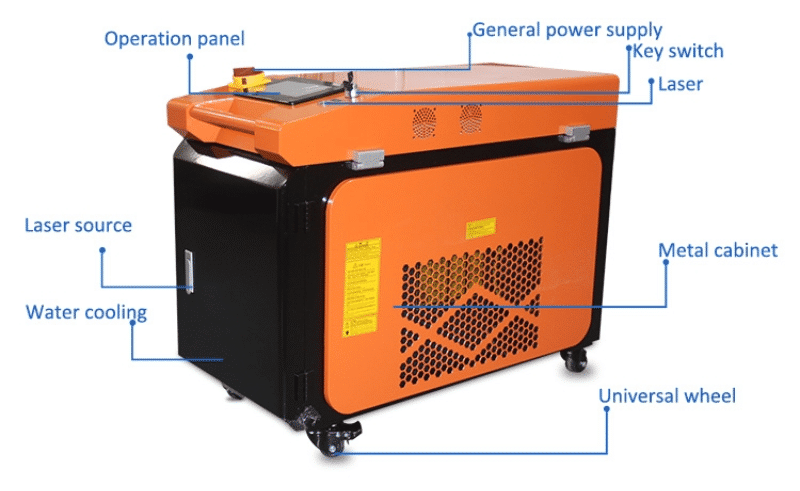

Product Detail
Laser source
IPG/Raycus/MAX/BWT Select brands according to your needs 1500w/2000w/3000w laser power optional,one-year warranty, high-quality beam, high power stability, system stable 20-50u core diameter, higher electro- optical conversion efficiency
Laser Welding Head
Easy to use, stable and safe, no consumables,small size,low operation and maintenance costs.Optional:SUP Qilin RelFar
Control Panel
LCD touch, easy to learn,6 different light emitting modes,supports 8 languages: Russian,English, Japanese, korean, German, Portuguese,Spanish,Arabic, etc. You can also translate and insert to software.
Clean Head Optional With Multi Mode
one operation panel control two guns,one for welding,one for cleaning.cleaning head has different modes to overcome different cleaning application.
Laser source
IPG/Raycus/MAX/BWT Select brands according to your needs 1500w/2000w/3000w laser power optional,one-year warranty, high-quality beam, high power stability, system stable 20-50u core diameter, higher electro- optical conversion efficiency
Laser Welding Head
Easy to use, stable and safe, no consumables,small size,low operation and maintenance costs.Optional:SUP Qilin RelFar
Control Panel
LCD touch, easy to learn,6 different light emitting modes,supports 8 languages: Russian,English, Japanese, korean, German, Portuguese,Spanish,Arabic, etc. You can also translate and insert to software.
Clean Head Optional With Multi Mode
one operation panel control two guns,one for welding,one for cleaning.cleaning head has different modes to overcome different cleaning application.

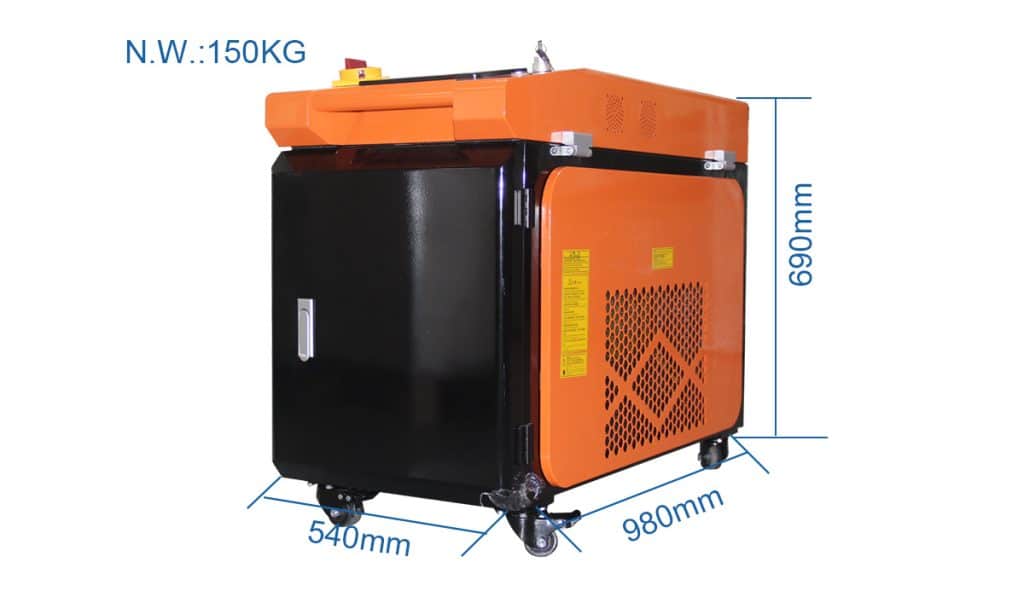

Product Size

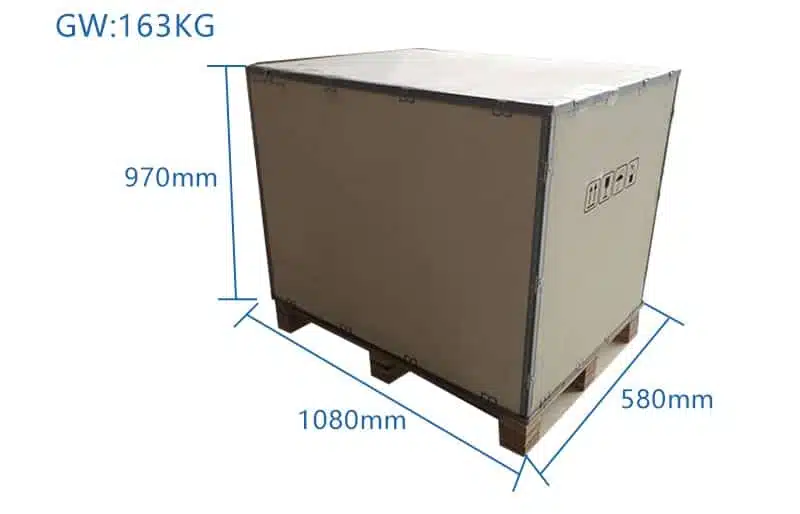

Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to your forwarder’s location.
Scenario 2: If you have customs clearance experience, we can assist you in contacting a freight forwarder.
Scenario 3: If you don’t have any customs clearance experience, we offer DDP service, where we will find a professional forwarder to deliver the product directly to your door.
FAQ
Q: If I want to become your distributor, can I get a discounted price?
A: Absolutely, we offer more favorable pricing for our distributors.
Q: Does the 3 in 1 handheld laser welding machine pose any harm to the human body?
A: Our 3 in 1 handheld laser welding machine is completely safe for the human body and also environmentally friendly.
Q:What is the lifespan of a 3 in 1 handheld laser welder?
A:In theory, the lifespan of our 3 in 1 handheld laser welder can reach up to 100,000 hours.
