Product Application

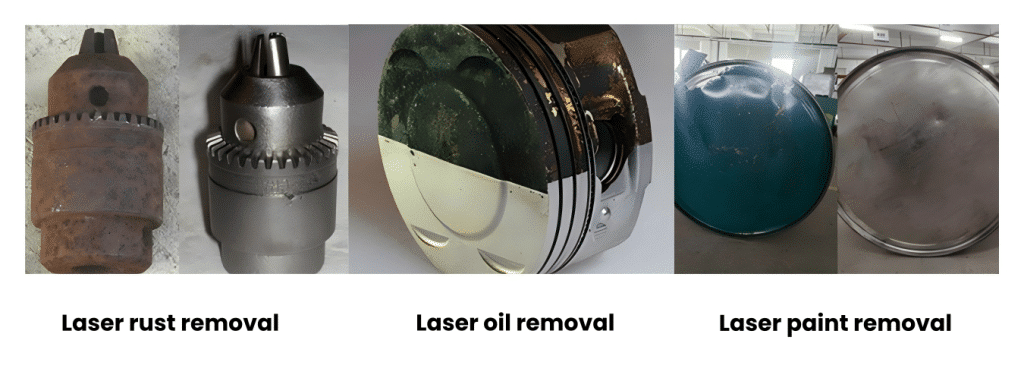

The RL-CW laser cleaning machine offers professionals a non-abrasive, safe, and sustainable surface treatment solution.Its applications include rust and corrosion removal, paint stripping and removal, steel structure rust removal, building exterior cleaning, mold degreasing, weld seam cleaning, metal part cleaning, gear decontamination, casting paint removal, classic car rust and paint repair, and wall graffiti removal.
Product Features
1.Big format metal rust removal laser cleaning machine has no grinding, non-contact, no thermal effect and suitable for various materials, etc.
2. Rapid, clean and accurate cleaning, removal of surface coatings, coatings, oxide.
3. No damage to substrate.
4. High cleaning precision, strong control ability.
5. Can be used for a long time, low operating costs.
6. The device can realize automatic operation and simple operation.
7. Environmentally friendly, no supplies, no two pollution.
8.No MOQ request,Wholesale price.Please contact us for wholesale price.
Service
Pre-Sales Service
After receiving your inquiry, we will promptly send you detailed product information and patiently address your questions.
Additionally, we will recommend suitable machines based on the information you provide and customize specific appearances to meet your needs.
After-Sales Service
We offer online operation guidance, and if you require further assistance, we can visit your location to provide free on-site training.
In the event of any damage during transportation,we will send you a replacement machine at no charge.
Additionally,any issues with our machines that arise within two years, provided they are not due to intentional damage will be covered by us.

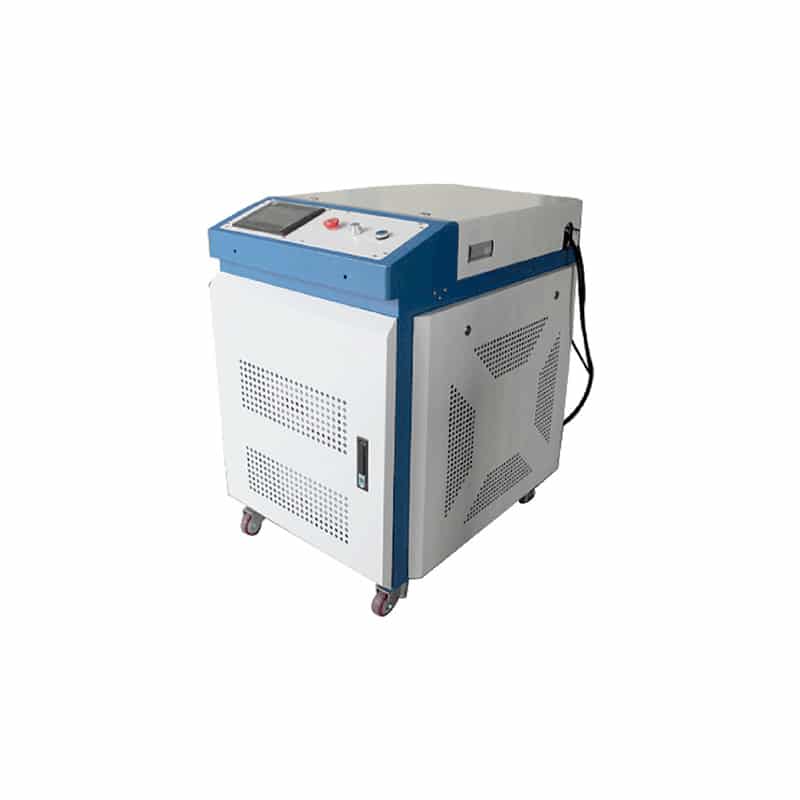

Product Display
Video Display
Product Parameters
| Laser Power | 1000W | 1500W | 2000W |
| Fiber cable Length | 10M | 10M | 10M |
| Wavelength | 1080nm | 1080nm | 1080nm |
| Cleaning Head | Single Axis | Single Axis | Single Axis |
| Clean speed | ≤60 M²/Hour | ≤65 M²/Hour | ≤70 M²/Hour |
| Cooling | Water cooling | Water cooling | Water cooling |
| Dimension | 103*99*72CM | 103*99*72CM | 103*99*72CM |

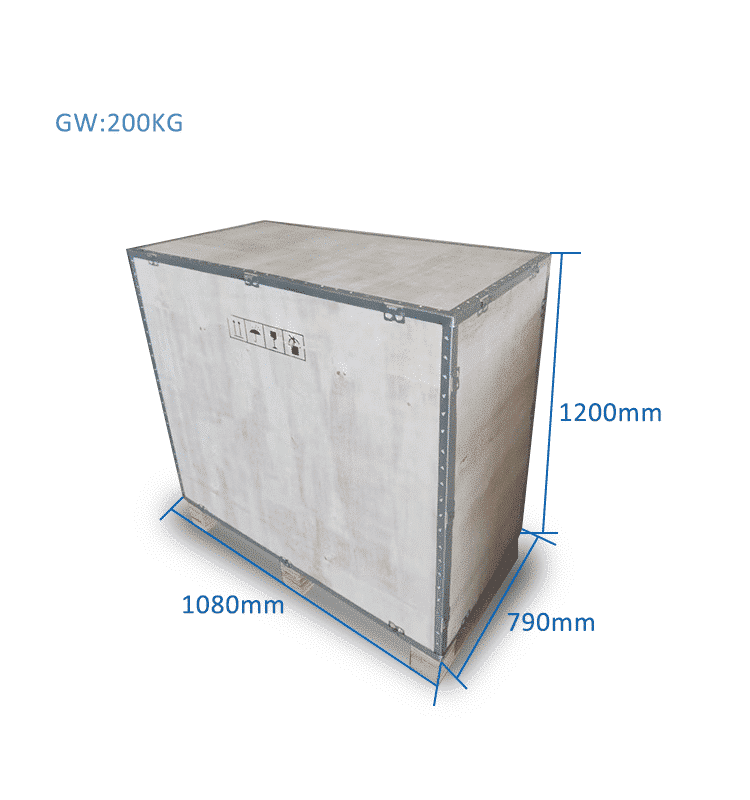

| Packing size | 120*108*79CM | 120*108*79CM | 120*108*79CM |
| Net Weight | 180KG | 180KG | 180KG |
| Gross Weight | 200KG | 200KG | 200KG |
| Optional | Manual | Manual | Manual |
| Temperature | 10-40 ℃ | 10-40 ℃ | 10-40 ℃ |
| Power | < 7KW | < 7.5KW | < 8KW |
| Voltage | Single Phase 220V, 50/60HZ | Single Phase 220V, 50/60HZ | Single Phase 220V, 50/60HZ |

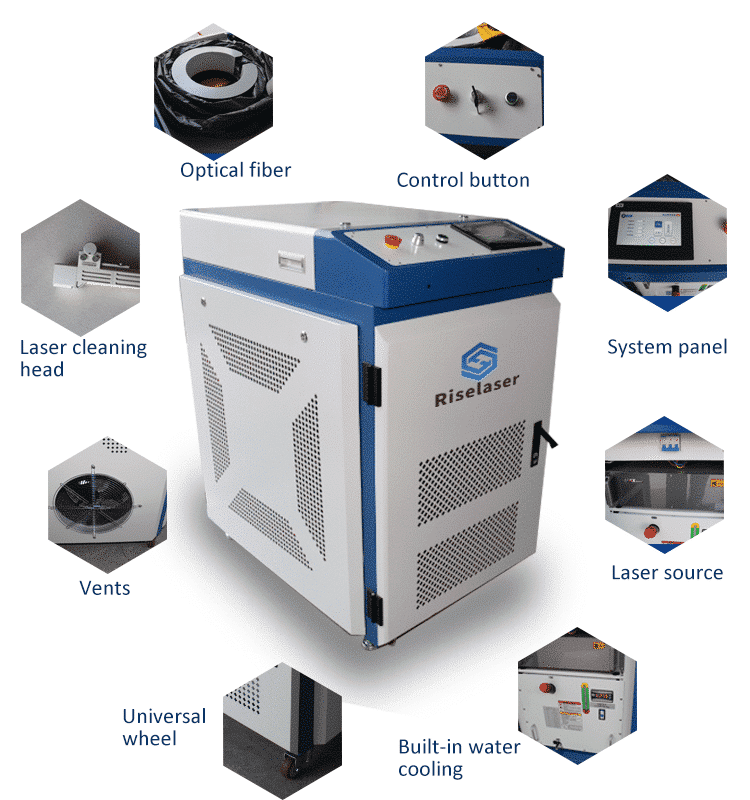

Product Details

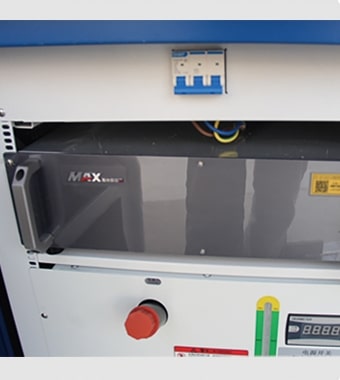

Multiple brands choose fiber laser source
Usually we usually provide Maxphotonics laser source, and can also provide other brands(Raycus, MAX, IPG and other brands) according to customer requirements.

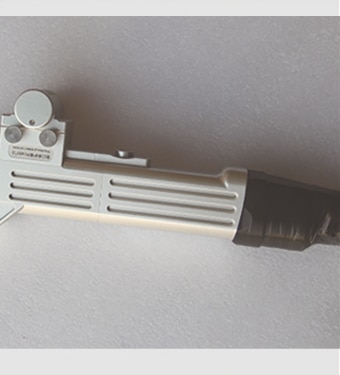

Cleaning head
Compared with the fixed cleaning head,it is more convenient to use and simple to operate.

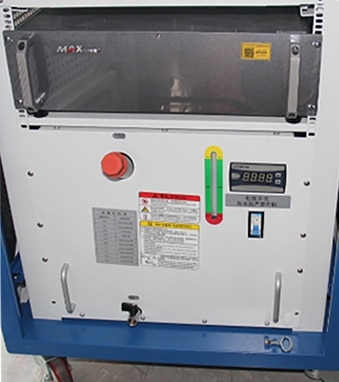

Chiller
Adapt to hot and cold dual temperature regulation. cooled cleaning head and laser source. The laser output is stable,fast and energy saving.

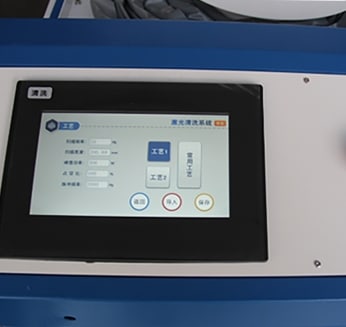

Control system
Touch screen operation interface, the working status is clear at a glance.

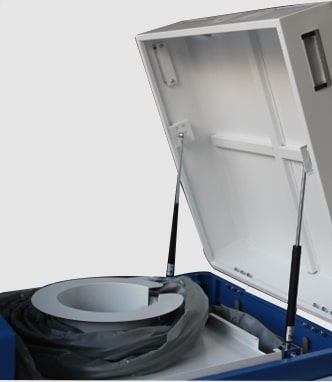

Clamshell design
Built-in ultra-long optical fiber cable,easy to operate, flip cover to effectively protect the optical fiber and cleaning head.

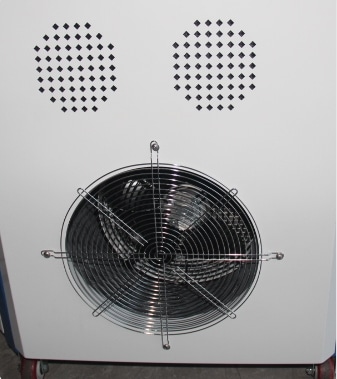

Cooling air inlet
Uniquely designed portable detachable dust net,better air intake,dustproof and dirt-proof, easy to disassemble and maintain.

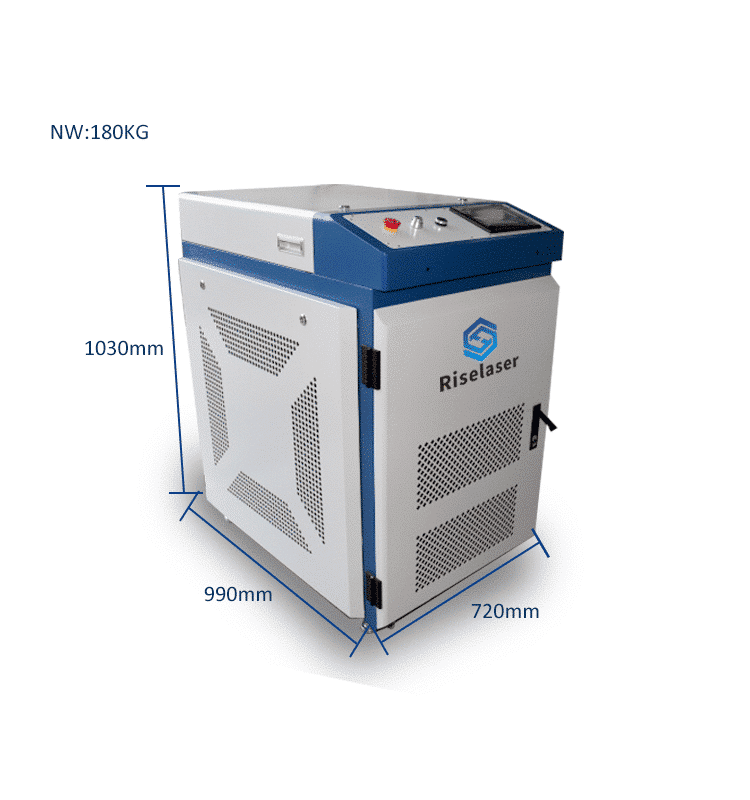

Product Size
Product Compaison
| Comparison | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
| Method | non-contact cleaning | contact cleaning | Abrasive contact | non-contact cleaning |
| Harm | None | Yes | Yes | None |
| Efficiency | High | Low | Low | Mid. |
| Consumable | Power | Chemical Detergent | Abrasive paper, grinder | Dry Ice |
| Result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
| Precision | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
| Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
| Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement; Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
| Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost. |
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to your forwarder’s location.
Scenario 2: If you have customs clearance experience, we can assist you in contacting a freight forwarder.
Scenario 3: If you don’t have any customs clearance experience, we offer DDP service, where we will find a professional forwarder to deliver the product directly to your door.
FAQ
Q: If I want to become your distributor, can I get a discounted price?
A: Absolutely, we offer more favorable pricing for our distributors.
Q: Does the laser cleaning machine pose any harm to the human body?
A: Our laser cleaning machine is completely safe for the human body and also environmentally friendly.
Q: Can the laser cleaning machine remove paint from wood?
A: Yes, our laser cleaning machine can effectively remove paint from wood without damaging the wood’s surface.
