As we move through 2026, the industrial landscape continues to demand lighter, stronger, and more efficient manufacturing processes. Aluminum has long been the darling of the automotive, aerospace, and renewable energy sectors due to its exceptional strength-to-weight ratio and corrosion resistance. However, for many years, welding aluminum was considered a “dark art” reserved for the most experienced TIG and MIG specialists. The high thermal conductivity and reflectivity of the metal made traditional arc welding slow, prone to distortion, and inconsistent.
Today, the shift toward laser weld aluminum technology has revolutionized production lines. Fiber laser systems, integrated with advanced “wobble” heads and intelligent wire feeders, have turned a once-difficult task into a high-speed, high-precision process. Whether you are building EV battery enclosures or aerospace components, understanding the nuances of aluminum laser welding is critical for maintaining a competitive edge in 2026.
Why Is Aluminum Challenging to Weld?
Before diving into parameters, it is essential to understand the material science that makes aluminum a unique challenge for laser systems. Aluminum differs significantly from carbon steel or stainless steel in three primary ways:
1. High Thermal Conductivity
Aluminum conducts heat approximately three to five times faster than steel. When a laser beam hits the surface, the heat is rapidly pulled away from the weld zone into the surrounding material. This requires a much higher power density at the start of the weld to establish a stable keyhole. Without sufficient power, the material simply dissipates the energy, resulting in a shallow, weak bead or no fusion at all.
2. Low Absorption of Fiber Lasers
In its solid state at room temperature, aluminum is highly reflective. Standard 1.06μm wavelength fiber lasers are initially reflected by the shiny surface. However, once the material reaches its melting point, its absorption rate increases dramatically. This “step-change” in absorption can lead to instability; if the laser power isn’t controlled precisely, you can transition from “no melt” to “burn-through” in milliseconds.
3. The Oxide Layer
Aluminum naturally forms a thin layer of aluminum oxide (Al2O3) on its surface. While the base aluminum melts at approximately 660°C, the oxide layer doesn’t melt until it reaches over 2,000°C. If this layer isn’t properly managed or removed, it can get trapped within the weld pool, leading to inclusions and structural weaknesses.
Choosing the Right Laser Welding Machine for Aluminum
Selecting the right hardware is the first step toward success. In 2026, the market is primarily divided into two categories: handheld systems for flexibility and robotic systems for high-volume precision.
Handheld Laser Welding Systems

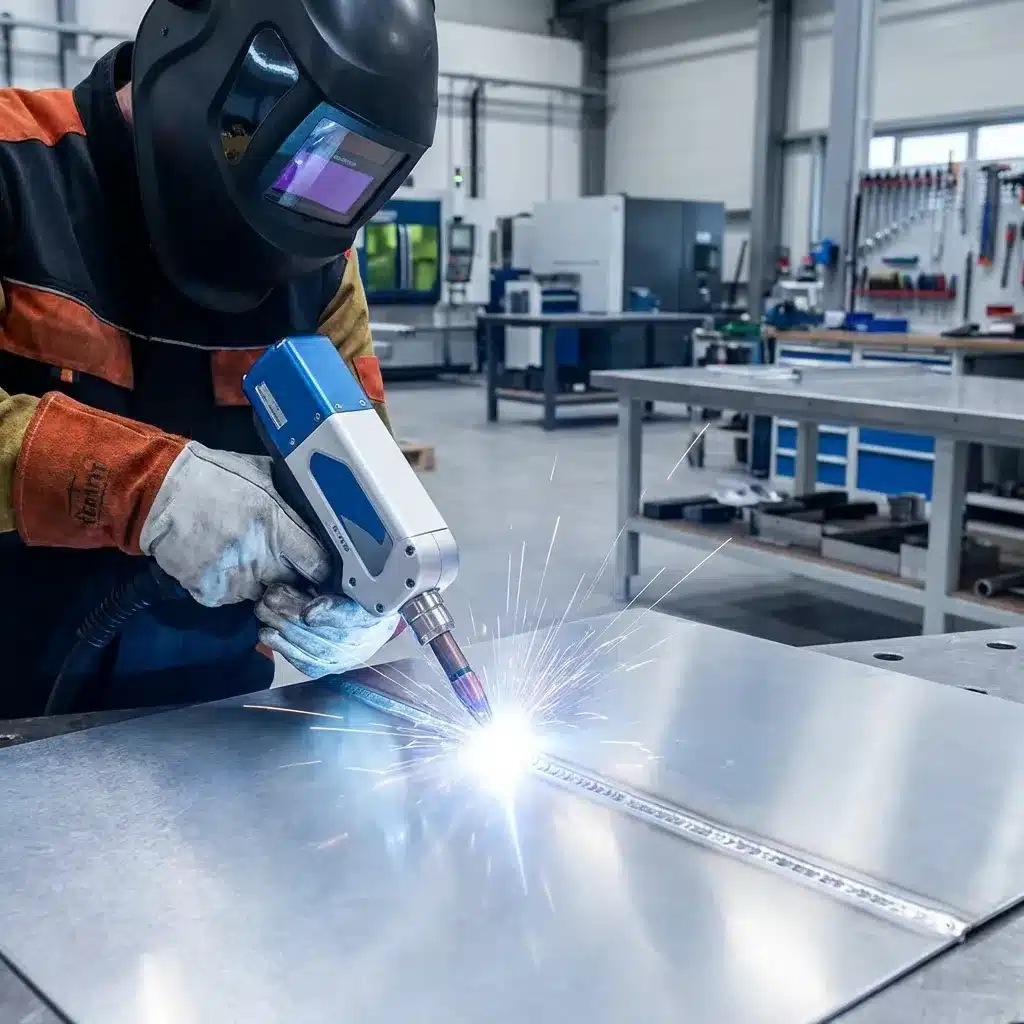

A handheld laser welding machine is an excellent choice for job shops, repair work, and complex geometries that are difficult to fixture. Modern handheld units are lightweight and feature integrated “wobble” functionality, which helps bridge gaps in aluminum assemblies that aren’t perfectly fitted.
Robotic Laser Welding Systems
For Tier 1 automotive suppliers and aerospace manufacturers, robotic laser welding is the gold standard. Robots provide the consistency and speed necessary for 24/7 production. They allow for precise control over the beam path and can be integrated with vision systems to track seams in real-time, compensating for the thermal expansion that aluminum often undergoes during the welding process.
Power Requirements
For aluminum, more power is generally better. While a 1kW laser might suffice for thin stainless steel, aluminum typically requires a laser welding machine with a minimum of 1.5kW. For materials thicker than 3mm, a 2kW or 3kW system is recommended to ensure deep penetration and to overcome the initial reflectivity of the metal. You can explore various laser welding machine options to find the power level that fits your specific material thickness.
Key Parameters for Successful Aluminum Laser Welding
Achieving a perfect weld requires a delicate balance of several variables. In 2026, digital twin technology and AI-assisted parameter tuning have made this easier, but the fundamental physics remain the same.
Laser Power and Pulse Settings
Continuous Wave (CW) lasers are most common for high-speed aluminum welding. However, “ramping” the power at the start and end of a weld is crucial. Because aluminum is a “heat sink,” starting with a higher power burst (the “piercing” phase) helps establish the keyhole quickly. Conversely, gradually decreasing power at the end of the seam prevents “crater cracking,” a common defect where the cooling metal shrinks and pulls apart at the finish point.
Shielding Gas (Argon vs. Helium)
The choice of shielding gas is vital for preventing oxidation and managing the plasma plume.
- Argon: The standard choice. It is cost-effective and provides excellent protection against atmospheric contamination. However, for thick aluminum, Argon’s low ionization potential can lead to plasma formation which interferes with the laser beam.
- Helium: Offers better thermal conductivity and suppresses plasma more effectively, allowing for deeper penetration. Because Helium is expensive, many 2026 systems use an Argon-Helium mix (e.g., 75/25) to get the best of both worlds.
- Flow Rate: For aluminum, a higher flow rate (15-25 L/min) is often needed compared to steel to ensure the weld pool is completely shielded.
Wire Feed Speed and Gap Control
Aluminum laser welding often benefits from the addition of filler wire. Filler wire helps in two ways: it bridges gaps in poor fit-ups and, more importantly, it allows you to adjust the chemistry of the weld pool to prevent cracking. In 2026, synchronized automatic wire feeders are standard, allowing the machine to adjust wire speed based on the welding travel speed dynamically.
Top Tips for Perfect Aluminum Weld Seams
To move from “functional” welds to “perfect” welds, follow these industry-best practices for 2026.
Surface Preparation: The Critical Step
You cannot skip cleaning when working with aluminum. Even a “clean-looking” sheet has an oxide layer and potentially residual oils from the milling process.
- Mechanical Cleaning: Use a stainless steel wire brush (dedicated only to aluminum) to break the oxide layer immediately before welding.
- Chemical Cleaning: Use acetone or specialized de-greasers to remove hydrocarbons. Any oil left on the surface will vaporize and cause porosity.
Wobble Welding Techniques
One of the biggest advancements in the last few years is “Wobble” technology. Instead of a static laser spot, the beam is oscillated in a pattern (circle, line, or figure-8) as it moves along the seam.
- Wobble Width: Typically set between 1mm and 5mm. This widens the weld pool, which slows down the cooling rate and allows gases to escape, significantly reducing porosity.
- Wobble Frequency: High-frequency oscillation (100Hz – 300Hz) helps stir the weld pool, refining the grain structure and improving the mechanical properties of the joint.
Common Errors and How to Avoid Them
Even with the best equipment, things can go wrong. Here are the most common issues when you laser weld aluminum and how to fix them.
Porosity (Bubbles in the Weld)
Porosity is the #1 enemy of aluminum welding. It is usually caused by hydrogen entrapment. Hydrogen is highly soluble in liquid aluminum but very insoluble in solid aluminum. As the pool freezes, the hydrogen forms bubbles.
- The Fix: Improve your cleaning process, increase your shielding gas flow, and use a wider wobble pattern to keep the pool liquid longer, giving bubbles time to rise to the surface.
Hot Cracking
Certain aluminum alloys (like the 6000 series) are “crack-sensitive.” As the weld cools, it shrinks, and the center of the weld can pull apart.
- The Fix: Use the correct filler wire. For 6061 aluminum, using 4043 or 5356 filler wire adds silicon or magnesium to the pool, changing the chemistry to a range that is less prone to cracking.
Burn-Through on Thin Sheets
Because of aluminum’s low melting point, it is easy to blow a hole right through thin gauges (under 1mm).
- The Fix: Increase your travel speed and use a pulsed laser setting rather than continuous wave. This reduces the total “Heat Affected Zone” (HAZ).
Applications of Aluminum Laser Welding in 2026
The applications for this technology have expanded rapidly in 2026 as industries push for decarbonization and efficiency.
Automotive EV Batteries
Electric vehicle battery trays and cooling plates are almost exclusively made of aluminum. Laser welding is the only process fast enough and precise enough to join these components without damaging the sensitive battery cells or electronics inside. The ability to create leak-proof seals for liquid cooling systems is a major advantage.
Aerospace Structural Components
Modern aircraft and satellites use advanced aluminum-lithium alloys. Robotic laser welding allows for a reduction in weight by replacing thousands of rivets with high-strength welded seams, improving fuel efficiency and payload capacity.
Heat Exchangers and HVAC
The high thermal conductivity of aluminum makes it ideal for heat exchangers. Laser welding allows for the creation of intricate, thin-walled structures that maximize surface area for heat transfer, something that traditional welding methods struggle to achieve without warping the material.
Conclusion
Laser welding aluminum has transitioned from a niche high-tech application to a mainstream industrial necessity in 2026. By understanding the material’s thermal properties, selecting the right 1.5kW+ fiber laser system, and mastering parameters like shielding gas and wobble patterns, manufacturers can produce welds that are faster, cleaner, and stronger than ever before.
